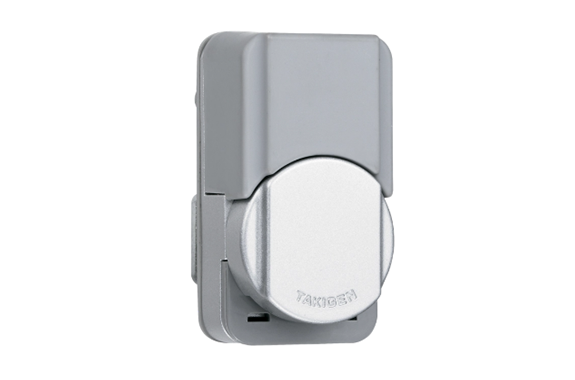

Takigen A-372-FS Waterproof Separate Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-372-FS
When combined with the double lock unit AC-372-FS-3, it provides a safety mechanism that locks and unlocks with both the key and the insertion/removal handle.
The lock is modularized, so it can be easily replaced if the key is lost.
Excellent key management.
Can be used on both the left and right sides (set for right-hand opening at the time of shipment. It can also be assembled and shipped for left-hand opening. Please inquire.)
Specification
Material: Aluminum alloy (ADC)
Surface finish: Silver metallic paint
Maximum applicable plate thickness: 2.3mm
Applications
Cubicles, switchboards, and distribution boards
Remarks
This diagram shows the right-hand set.
A-372-FS-3 is a specification without a lock.
The lock unit AC-372-FS-3 can be retrofitted to this product. In that case, be sure to use the M4 screw that comes with the lock unit AC-372-FS-3. Also, waterproof the area around the screw.
When tightening the M22 nut when installing the product, we recommend applying a “locking agent” to prevent loosening.
To ensure long-term use of this product, we recommend that you regularly apply lubricant to the sliding parts.
