Takigen

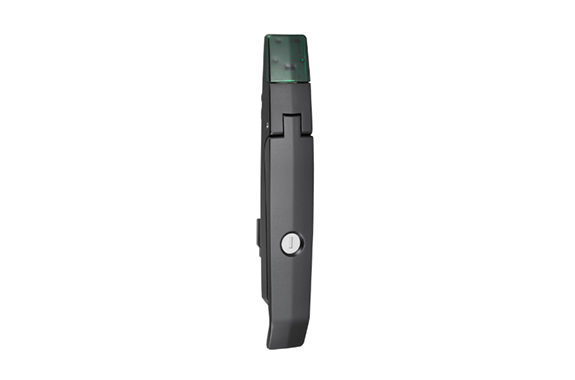

Takigen A-452 Outside Flat Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-452
* New design and low cost
* Closing the handle rotates the claw to seal the door.

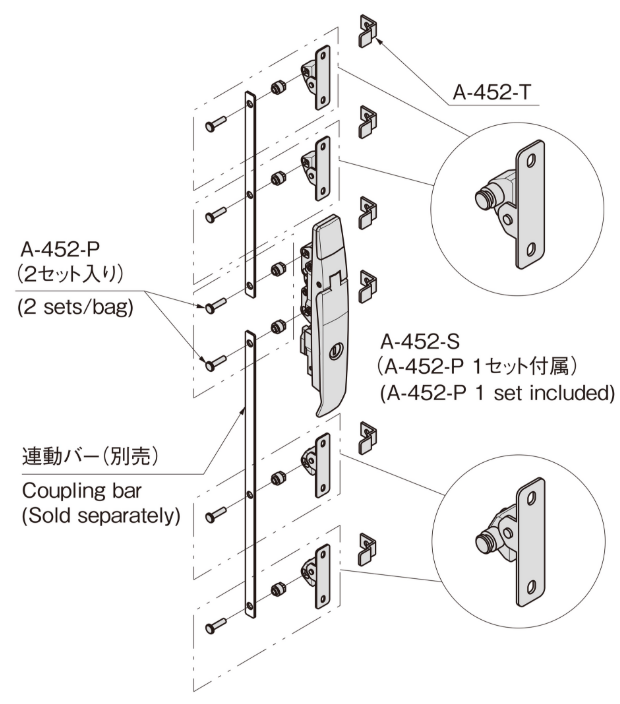

* Can be used in combination with the terminal unit (A-452-S, A-452-P) for multi-point fastening. Ideal for tall server racks.
* Requires little installation space, allowing for effective use of the inside of the cabinet.
* Can be used on both the left and right side
Specification
Material: Zinc alloy (ZDC)
Surface finish: Acrylic resin coating (black)
Applicable plate thickness: 0.8 to 2.0 mm
Key number: 0200
Accessories: M5 x 6 truss screws
Applications
Server racks, information boards, racks for communication equipment, power distribution boards, and control panels
Remarks
Can be changed to the high security TAK series lock.
Master system, different key, and specified same number are also available.
Please be sure to apply a loosening prevention agent to the mounting screws that come with A-452-S and A-452-P.
Application method

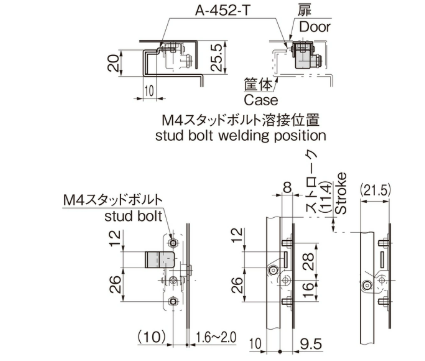

Mounting refence diagram
