Takigen A-462 Outside Gasket Handle Series

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-452

The handle is attached to the outside of the packing, so there is no need to apply caulking to the handle attachment part when waterproofing is required.
The handle is attached outside the sealing area, so the space inside the cabinet can be used effectively.
A large stroke (32 mm) is obtained with a slim body.
The length of the rod does not need to be changed even if the size of the cabinet changes.
The rod receiver and recommended hinge B-71-3 are compatible for installation. In addition, the panel holes for the handle are symmetrical on the top and bottom, making it easy to design the cabinet. (Doors can be mounted on either side)
The lock comes standard with a new reversible key TAK60 with dustproof shutter that is easy to operate (A-462-1-1-TAK60).
Available for right-handed and left-handed use, with and without key.

Specification

Material:
Body/roller support: zinc alloy (ZDC)
Roller unit: cold rolled steel plate (SPCC)
Polyacetal (POM)
Sleeve/support: cold rolled steel plate (SPCC)

Surface finish:
Body: satellite chrome plating (MZCr)
Sleeve/support: zinc plating chromate treatment (MFZn-C)
Roller support: zinc plating chromate treatment (MZZn-C)

Key number: TAK60-0200
Accessories: 2 keys, 2 sleeves, 2 roller supports, support/roller unit, 2 push nuts, spacer, 1 handle rotation instruction sticker
Applicable plate thickness: 1.6 to 2.3 mm (use the included spacer only when installing on a 1.6 mm door.)

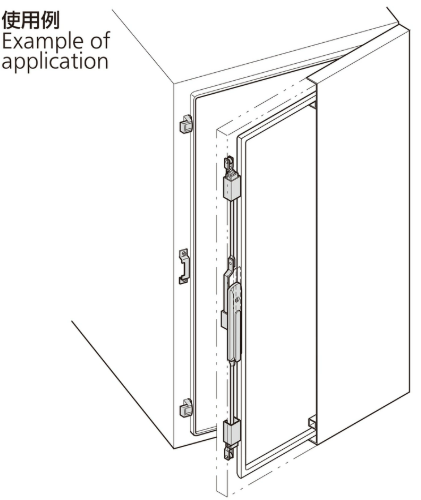

Applications

Communication racks

Remarks

We can also manufacture the same number as specified, but with different keys.
Please contact us if you require a different rod length.
We can also manufacture double door specifications.
We recommend applying a “loosening prevention agent” to the screws used to attach the stopper plate of this product to prevent them from loosening.
