Manufacturer: TAKIGEN MFG.CO.,LTD.

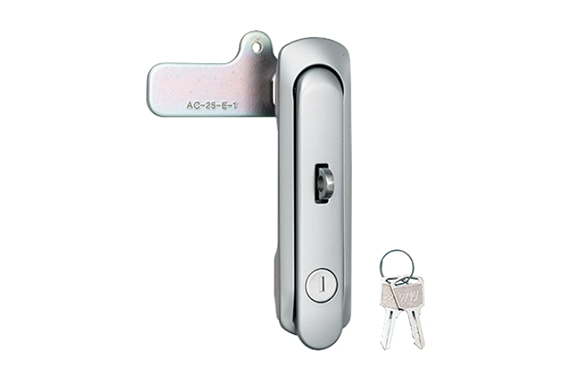

Model: A-464-PDL

You can lock the unit with a padlock (shackle diameter φ6), which allows for double locking and adds extra security. (Model: A-464-PDL-1-1) Additionally, you can install it using the same panel drilling dimensions as the A-464-1, making it easy to upgrade or replace.

For flexible installation, you can use the product on either the left or right side by reversing the cam and stopper plate. It also meets waterproof standards equivalent to IPX5, thanks to the use of an O-ring and packing for reliable sealing.

Specification

Material: Zinc alloy (ZDC)
Surface finish: Acrylic resin baked coating
Accessories: Clasp (AC-25-E-1), mounting plate, screw set, 2 keys
Applicable padlock: Padlock with string diameter of φ6 (C-551-TAK80 p. 1314, etc.)

Applications

Distribution board/control board

Remarks

Keyless type is also available.
Master system, specified same number, and different key are also available.
We recommend applying a “loosening prevention agent” to the stopper plate mounting screw of this product to prevent loosening.
Keyless type is available in stainless steel.
