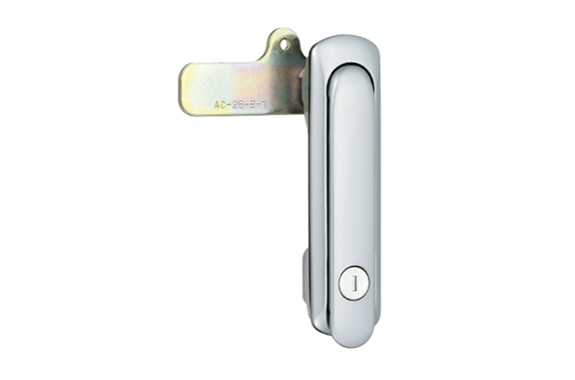

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-464

Choose from the multi-key TAK55 with a reinforced disk for significantly improved security, the reversible key TAK60 with excellent operability, and the 0200 key.
Waterproof type (uses O-ring and sheet packing)
Waterproof standard equivalent to IPX5 (A-464-1/2/3)
Panel drilling dimensions are compatible with the A-160, A-240, and other series.
Can be used on either side (the cam and stopper plate can be reversed to switch between left and right).

Specification

Material: Zinc alloy (ZDC)
Finish: Satellite chrome plating (MZCr)
Key number: TAK55, TAK60, 0200
Accessories: Stopper plate, mounting plate, screw set, 2 keys

Applications

Server racks, power distribution boards, and control panels

Remarks

Available in baked finish finishes such as silver metallic.
The plate thickness can be increased by changing the mounting screws. A-464-1: 4mm (M5×16 SW, PW)
The lock on this product is operated with the tip of the key. (A-464-2/3 only)
We recommend applying a “locking agent” to the screws used to mount the stopper plate on this product to prevent them from loosening.
For protection ratings, see “Waterproof Standard IP Indication” (pages 17-18).
