Takigen
Takigen A-474 Flat Clamp Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-474
The lock comes standard with the new reversible key TAK60 with dustproof shutter for excellent operability (A-474-TAK60).
By storing the handle, the stopper rotates and lifts 3mm, providing a shielding effect.
Soft design with an overall radius
Satellite chrome plating (25mm) for improved rust prevention

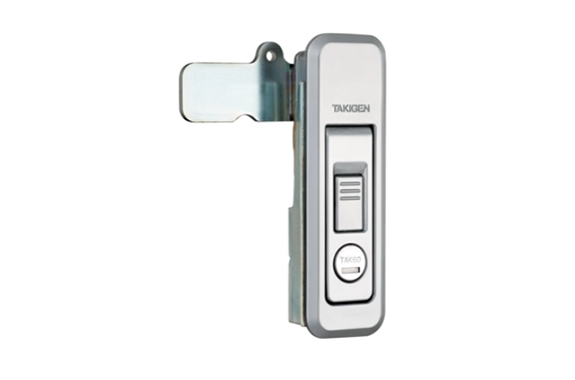

For right-hand and left-hand opening (this drawing and photo are for right-hand opening)
Specification
Material: Zinc alloy (ZDC)
Surface finish: Satellite chrome plating (MZCr)
Key number: TAK60・0200
Applicable plate thickness: 1.2～4mm
Accessories: 2 keys, mounting plate, screw set, special stopper plate
Applications
EMI prevention shielded racks, cabinets, and control panels
Remarks
Please contact us for No.R0220 and No.500 keys.
To ensure long life, periodically apply high performance lubricant C-985 (page 1438) to the sliding parts.
We recommend applying a “loosening prevention agent” to the screws used to attach the stopper plate of this product to prevent them from loosening.
