Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-480-A

* Choose from the multi-key TAK55, which has a reinforced disk for significantly increased security, or the reversible key TAK60/R0220, which offers excellent operability.
* One-touch mechanism (open & lock)
* The lock has a dustproof shutter
* Waterproof type (uses O-ring and packing)
* Waterproof standard equivalent to IPX5 (A-480-A-1/A-480-A-2)
* Can be used on either hand (the left or right can be switched by flipping the cam and stopper plate over.)

Specification

Material: Aluminum alloy (ADC)
Surface finish: Baked paint
Standard color: Black
Accessories: 2 keys, screw set, stopper plate, mounting plate, rotation direction seal
Applicable plate thickness: 0.6 to 2.3 (A-480-A-1/2)
0.6 to 3.2 (A-480-A-3)

Applications

Large cubicle/Large door used in conjunction with rods

Remarks

We also manufacture master systems, specified same numbers, and different keys.
A-480-A-1 and A-2 can accommodate plate thicknesses up to 3.2 mm by changing the mounting screws to (M5 x 14SW).
Please note that the lever will open forcefully when unlocking.
We recommend applying a “loosening prevention agent” to the screws used to mount the stopper plate of this product to prevent them from loosening.

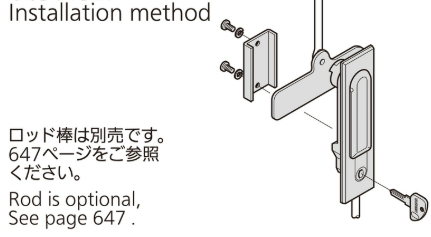

Installation method
