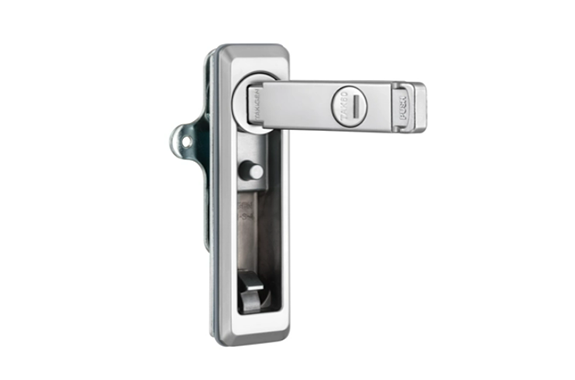

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-494

Can be installed using the panel drilling dimensions of the flat handle A-160 and A-240 series. (A-494-5)
Ultra-thin design with a depth of 13 to 22 mm from the mounting surface to the stopper plate
Waterproof type (uses O-ring and sheet packing)
Can be used on both sides (left and right can be switched by reversing the cam and stopper plate)
The lock comes standard with the new reversible key TAK60 with dustproof shutter, which is easy to operate.

Specification

Material: Zinc alloy (ZDC)
Finish: Satellite chrome plating (MZCr)
Accessories: 2 keys, screw set, special stopper plate, mounting plate

Applications

Cubicles, distribution boards, control panels

Remarks

The plate thickness can be increased by changing the mounting screws.
A-494-1: 5mm (M5 x 14SW)
A-494-2: 4mm (M4 x 12SW)
A-494-S-3: 3.5mm (M4 x 12SW)
A-494-S-4: 4mm (M4 x 12SW)
A-494-5: 3.5mm (M4 x 12SW)

The lock on this product is operated with the tip of the key.
We recommend applying a “locking agent” to the screws used to install the stopper plate on this product to prevent them from loosening.
