Takigen
Takigen A-878-2 Flush Handle For Sliding Doors Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-878-2
Small handle for sliding doors.
Available in sickle lock and rod operation types.
Flat type with few protrusions, so can be used on sliding doors.
Surface mounting means no restrictions on panel thickness.
Lock has a small reversible key.

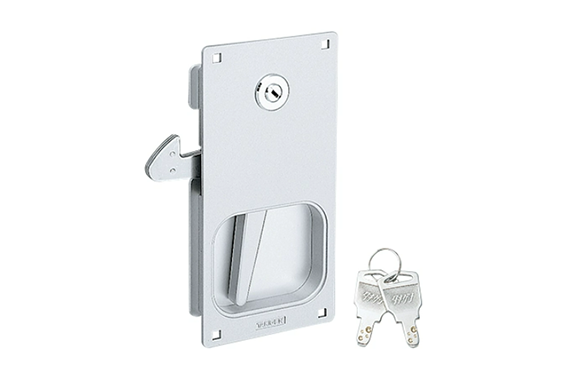

For right-hand and left-hand opening (This diagram and photo are for right-hand opening.)
Specification
Material: Aluminum alloy (ADC)
Finish: Baked paint (silver metallic)
Key number: 1871
Accessories: 2 keys
Purpose
Remarks
Use M5 round head bolts for installation.
An auto-lock type is also available, which locks automatically when the door is closed. (A-878-2C only)
An indicator type is also available. (A-878-2A only)
To ensure long-term use, periodically apply high-performance lubricant C-985 (page 1438) to the sliding parts.
