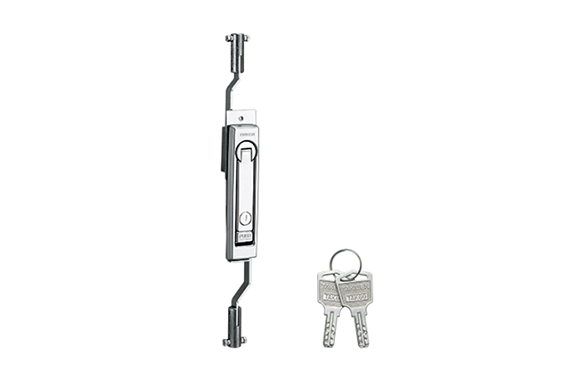

Takigen AC-100-E Waterproof Flat Handle With Rod Controller Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: AC-100-E
* The rod is attached straight.
* The center can be determined without bending.
* The lock comes standard with the new reversible key TAK60 with dustproof shutter for excellent operability (AC-100-E-TAK60).
* The handle is a swing flat type that is easy to use
. * Three-point fastening is possible in combination with the stopper plate.
* Waterproof type (uses O-ring and sheet packing) .
* Can be used on either side (the left or right side can be switched by turning the control center over.)
Specification
Material: Zinc alloy (ZDC)
Finish:
Handle/Satellite chrome plating (MZCr)
Control center/Chrome plating (MZCr)
Key number: TAK60・0200
Maximum applicable plate thickness: 3.2mm
Accessories: 2 keys
Applications
Cubicles, distribution boards, control panels
Remarks
To tighten the door, use in combination with the rod roller unit AC-25-RA/RB/RC (page 649).
Rod is compatible with φ8 and φ10.
For L-handle type AC-100-A, please refer to page 205, and for removable handle type AC-100-NB, please refer to page 254.
We also manufacture different keys and the same number as specified.
We recommend applying a “loosening prevention agent” to the screws used to attach the stopper plate of this product to prevent them from loosening.
Example of application
