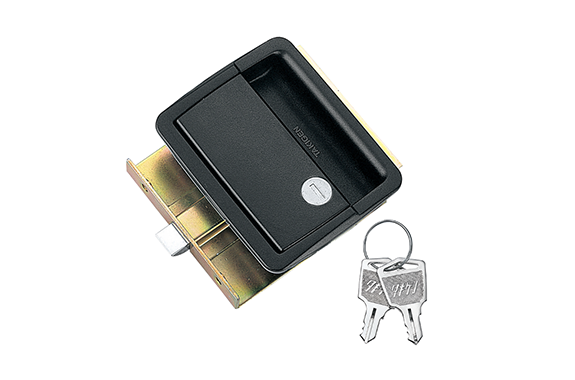

Takigen AP-151R-1 Latch Type Flat Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: AP-151R-1
Soft, rounded design
Can be opened and closed with one touch.
Dimensionally compatible with the A-151 series, it has a dust-proof and drip-proof structure.
A shutter has been added to the front of the key to improve dust resistance. (Standard equipment)
Specification
Materials: Body/AAS resin case/cold-rolled steel plate (SPCC)
Standard color: Black
Key number: 400
Applicable plate thickness: 1.2 to 3.0 mm
Accessories: Mounting plate, screw set, split pin, 2 keys
Applications
Remarks
The latch connects to the handle and keeps the door closed.
Striker A-151-ST-2 is available (page 454).
AP-151-RK for construction machines is in development.
If the latch hole doesn’t fit the door, use the special setting plate (left photo). Handle body needs extra processing. Contact us for details.
Use tapping screws for the AP-151 series. Don’t overtighten or use high-speed drills. Torque: 1.5 Nm.
Check compatibility before using solvents or locking agents.
We can make a single-action type that locks and still closes.
