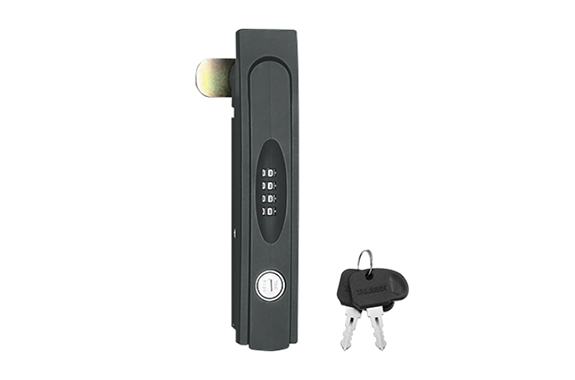

Takigen AP-467-DL-TAK70 Plastic Combination Lock Flat Handle

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: AP-467-DL-TAK70

The lock can be opened simply by matching the code (dial) with the PIN number, so there is no need to manage child keys.
The high-security TAK series lock is built in and can be unlocked with a key. Effective for individual response and as a master system with a general administrator.
The code is four digits from 0 to 9, allowing for 10,000 possible combinations.
The PIN number can be easily changed with a single lever operation.
When installing, temporary fixing can be achieved with one touch, improving workability.
Made of durable glass fiber reinforced resin.
Lightweight as it is made of resin.
Can be used on both left and right hands.

Specification

Material: Polyamide (PA6-GF30)
Standard color: Black
Applicable plate thickness: 0.8 to 2.3 mm
Accessories: Stopper plate, screw set, 2 keys

Applications

Information boards, communication equipment racks, power distribution boards, and control panels

Remarks

You can also choose the standard type AP-467, which shares the same shape. The system supports various key configurations, including master systems, key numbers like 0200 and R200, different individual keys, or even specified matching numbers to suit your setup.

To keep everything running smoothly, make sure to apply lubricant to the sliding parts regularly. Always return the handle to the main body using the correct set number—using the wrong number may cause malfunctions or damage. You can only operate the variable lever when you’ve entered the correct PIN.

Since this product isn’t waterproof, we recommend using it indoors. When attaching the stopper plate, apply a “loosening prevention agent” to the screws to avoid them coming loose over time. Before using any chemical agents like this, be sure to test them thoroughly to ensure they won’t damage the product.
