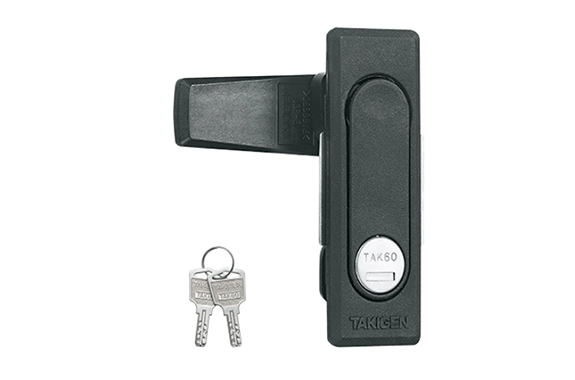

Takigen AP-501 Plastic Flush Handle Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: AP-501
We provide the lock with the TAK60 reversible key as standard, and this key includes a dustproof shutter that ensures smooth and easy operation. Additionally, we construct the lock from durable glass fiber reinforced resin, which offers excellent strength while keeping the weight low.
Specification
We use polyamide (PA66-GF50) for the lock body to ensure high strength and durability. For the packing, we offer two options: the AP-501-3-1 model uses an elastomer for flexibility and sealing performance, while the AP-501-3-1H model uses EPDM, which enhances resistance to weather and aging.Surface finish: Textured finish (design surface)
Applicable plate thickness: 0.8 to 1.6 mm
Accessories: Screw set, 2 keys
Applications
Remarks
Designed exclusively for TAK60, other locks cannot be installed.
Please thoroughly test before using any solvents such as loosening prevention agents.
