Manufacturer: TAKIGEN MFG.CO.,LTD.

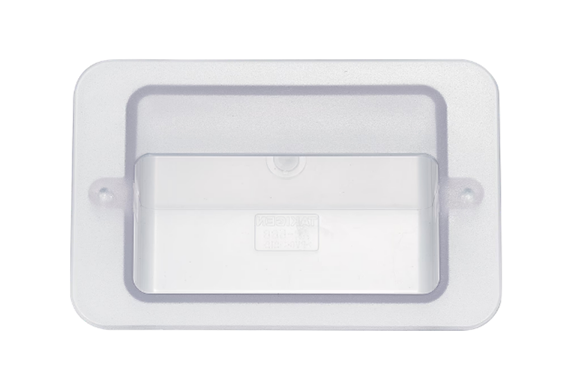

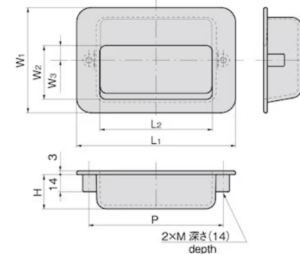

Model: AP-566-1-Clear

Features

●Compliant with SEMIS8-0218
for use when wearing cleanroom gloves (2018 edition)
AP-566-1 and AP-566N-2: SESC6.9.1
Compliant with SEMI S8-0701 (2001 edition)
AP-566-2: SESC6.9.1
The compact type now complies with the latest SEMI standards and is available in white as standard. (AP-566N-2)
Uses lead-free vinyl chloride resin for chemical resistance
Can be used for PVC welding and screw fastening
Large opening for excellent operability.

Specification

Material: Polyvinyl chloride resin (PVC)

Standard colors: AP-566-1/2 / transparent and ivory AP-566N-2 / transparent and white

Accessories: Fixing washers and cross-recessed small pan head screws (M5 x 18) x 2 each

Applicable panel thickness: 1.0 to 8.0 mm (when mounting from the panel side)

Purpose

●Semiconductor manufacturing equipment/FPD manufacturing equipment

Remarks

●When using solvents such as anti-loosening agents, please test them thoroughly.
