Takigen

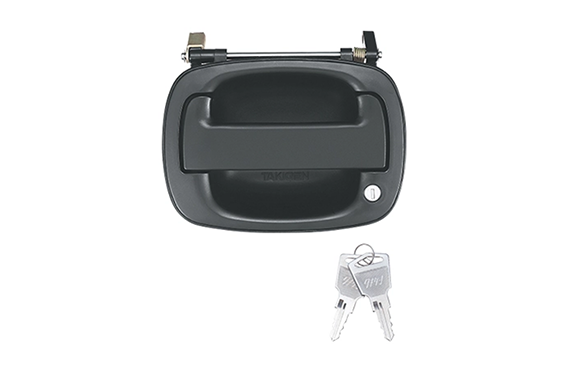

Takigen AP-886 Large Lid Handle
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: AP-886
Soft-touch handle ideal for large lift doors.
Lock and handle are integrated.
The lock is a reversible key with a dustproof shutter.
Flat type with minimal protrusions from the door surface.
Specification
Material: AES resin
Standard color: Black
Accessories: 2 keys
Applications
Buses, specially equipped vehicles, lift doors
Remarks
This product uses non-crystalline resin material and is not compatible with loosening prevention agents, so please avoid using it. (This is also written in the precautions for some loosening prevention agents.)
Three-point fastening is possible when combined with the C-878 control center. (See page 1220)
Manufactured in your specified color.
For long-term use, periodically apply high-performance lubricant C-985 (page 1438) to the sliding parts.
Please thoroughly test the use of solvents such as loosening prevention agents.

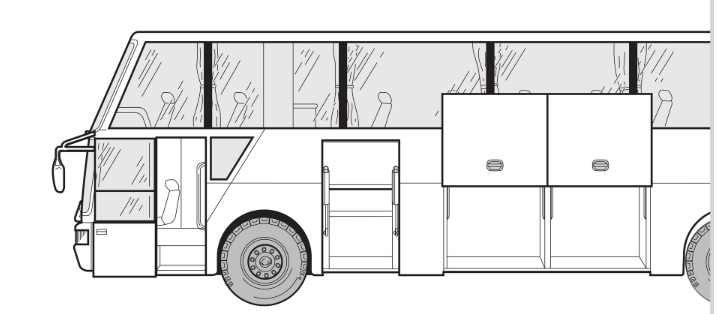

Example of application
