Manufacturer: TAKIGEN MFG.CO.,LTD.

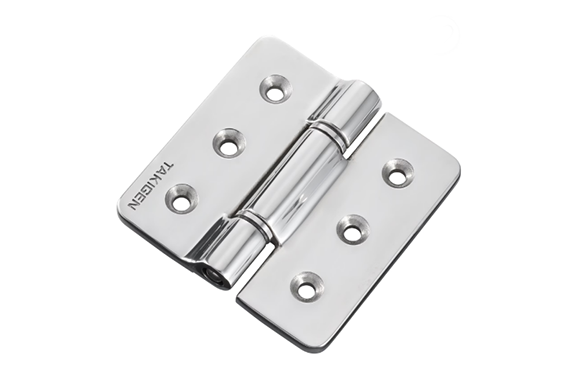

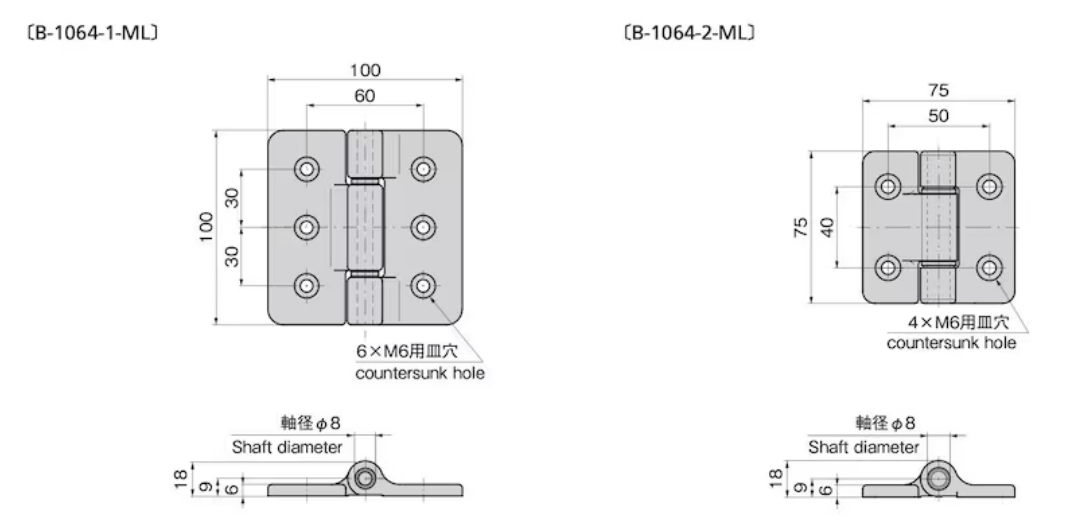

Model: B-1064-1-ML

Features

Developed for secondary battery manufacturing equipment.
Does not use copper or zinc as materials.
A hinge with a metal touchless structure that eliminates metal sliding.
The bearing section uses a high-performance synthetic resin that is highly strong, flame-retardant (UL94 V-0), heat-resistant (250°C), and chemical-resistant.
Installation is compatible with the conventional B-1064 and B-1064-CR.

Specification

●Material:

Blades/Stainless steel casting (SUS304)

Shaft/Stainless steel rod (SUS304)

Bearing/Synthetic resin (black)

●Surface finish: Blades/Mirror buff polishing

Purpose

● Secondary battery manufacturing equipment, semiconductor manufacturing equipment,

various clean room equipment
