Manufacturer: TAKIGEN MFG.CO.,LTD.

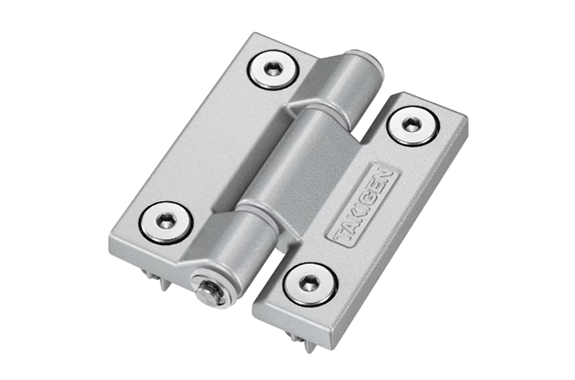

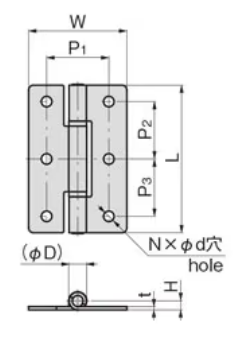

Model: B-950-30

Features

No need to prepare bolts and nuts. Can be quickly attached to an aluminum frame.
 The temporary fastening function makes position adjustment easy.
A resin bush is built into the axis of the hinge blade to reduce particle generation.
Kurukachi series

Specification

●Material: Body: Aluminum alloy (ADC)

, Shaft: Stainless steel rod (SUS303)

, Bush: Polyacetal (POM)

●Finish: Baked finish (silver)

Remarks

●Recommended tightening torque: 4N・m

●Do not use power tools to tighten or remove.

●When removing, turn the screw all the way.

●Compatible aluminum frame (groove width 8mm)

Misumi 6 series,

SUS SF30 series
