Manufacturer: TAKIGEN MFG.CO.,LTD.

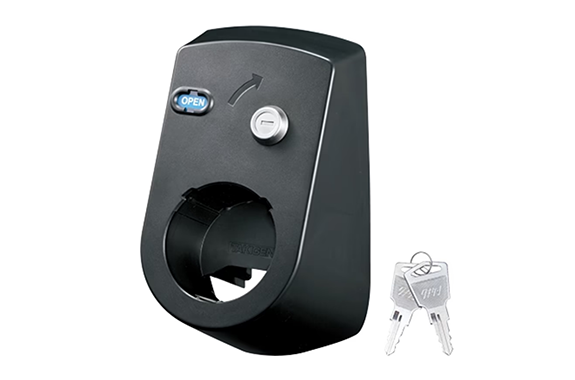

Model: CP-468-1

Features

Prevents tampering with the connector when not charging.
Compatible with CHAdeMO connectors.
*Some connectors cannot use
Available in four types: keyed type (CP-468-1), solenoid type (LE-468), holder only (CP-468-2), and connector detection type (CP-468-2S).
The connector insertion port has a drilled hole design that prevents debris from accumulating.
Easy installation from the back with four M6 screws.

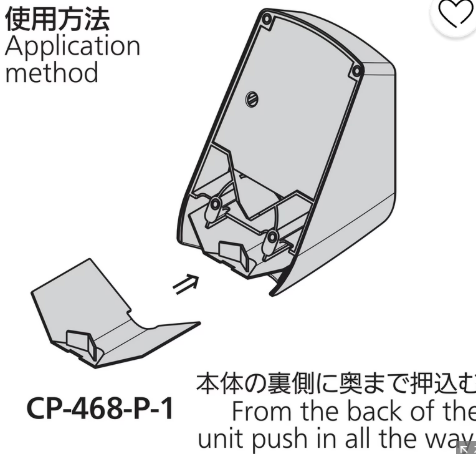

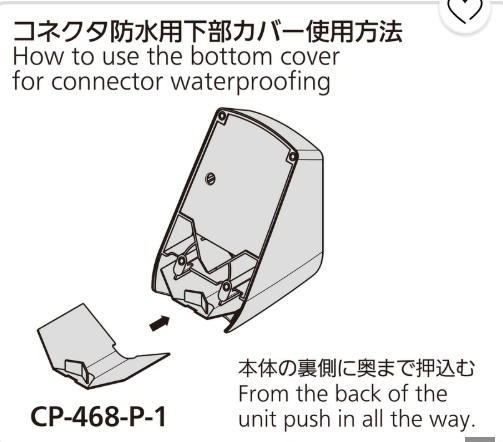

When used in combination with CP-468-P-1, it protects the charging connector electrodes from water damage. (IPX4 equivalent)
The lock has a reversible key with a dustproof shutter. The two-way key removal allows the unlock state to be maintain
Key specifications can customize to accommodate different keys or customer-specified numbers.
An indicator is include, allowing you to easily check the lock/unlock status.
A connector detection switch can customize as well.
A simple mechanism that simply holds the connector.
The mounting dimensions are compatible with other types, so it can change to a key type or solenoid type depending on the operation.
Switch type of CP-468-2. Comes with connector detection function.
Can be used in conjunction with a billing system. Ideal for storing and managing connectors.
