Specification

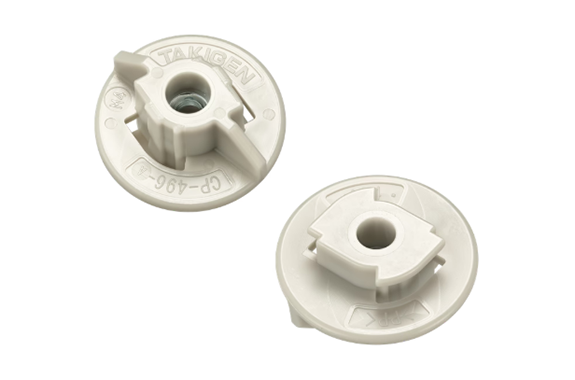

●Material:

Body/Polypropylene (PP)

, Insert Nut (CP-496-M4-A/M5-A)/Cold heading carbon steel wire (equivalent to SWRCH)

●Surface Finish: Insert Nut/Zinc plated chromate treatment (MFZn-C)

●Standard Color: 5Y7/1 (Ivory)

Purpose

Fixing wiring ducts and protective covers for cubicles and distribution boards

Remarks

Recommended tightening torque: M4 = 0.75N・m, M5 = 1.5N・m, M6 = 2.0N・m

Depending on the thickness of the paint film, operation may feel stiff, so please check the actual product.

Avoid repeated installation and removal of Type B.

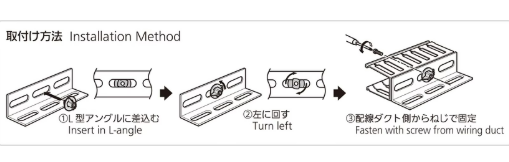

For fixing, use screws with an effective screw length of 14.3mm or more.

Do not use for purposes other than their intended use.

Sold in units of 1 bag (100 pieces)
