Takigen
Takigen CP-684-1 One-touch Flange For Preventing Subsidence

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: CP-684-1
Features
Prevents cultivation racks for strawberries and other crops from sinking.

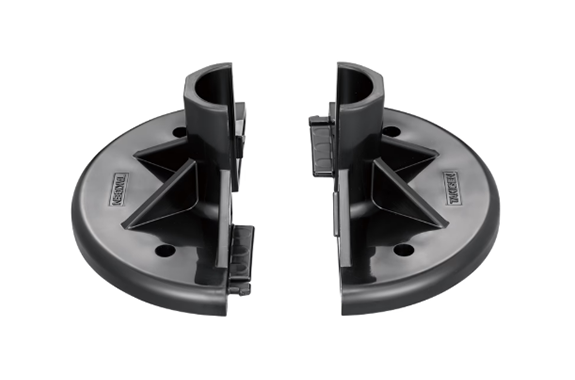

Can be installed later as it is a split type.
Can be fixed to pipes with a self-tapping screw with a drill. (M4 x 13 recommended)
The self-tapping screw with a drill can be tightened high, so it can be installed with an electric drill.
Driving nails into the ground surface prevents sinking and lateral movement.

Specification
●Material: Polypropylene (PP)
weather-resistant grade
●Applicable pipe: φ22.2
Purpose
●Prevents pipe mounting base from sinking
Remarks
*Please use M4 x 13 tapping screws with drill to connect pipes.
*2 pieces per set.
