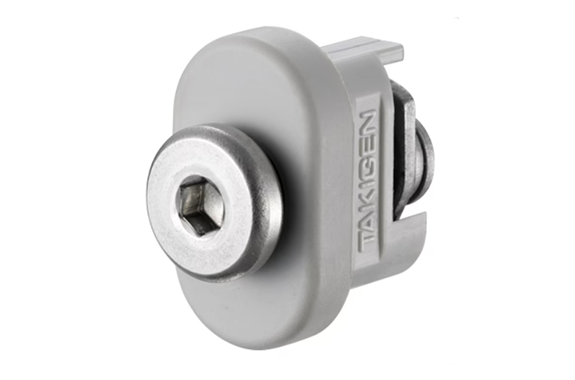

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: CP-950-30

Features

Panels can be easily fixed to aluminum frames.
Nuts are built into the product body, significantly reducing work time.
High-strength resin is used
Can be attached to the panel with one touch and will not fall off. Comes with a fall prevention function. (CP-950-H)
Kurukachi series

Specification

●Material:

[CP-950-30]

Body: Polyamide (PA-GF50)

Bolt: Stainless steel bar (SUS304)

Nut: Stainless steel plate (SUS304)

Standard color: Light gray

[CP-950-30-H]

Body: Polyamide (PA-GF50), Polycarbonate (PC)

Bolt: Stainless steel bar (SUS304)

Nut: Stainless steel plate (SUS304)

Standard color: Transparent + Light gray

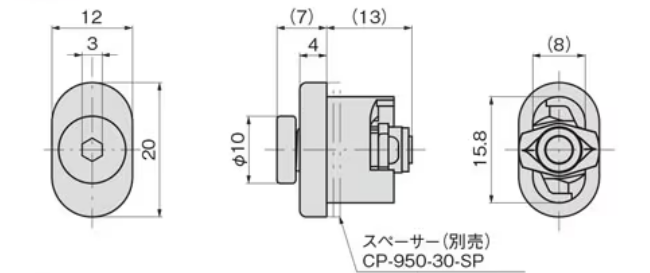

[CP-950-30-SP]

Spacer: Polyacetal (POM)

Purpose

Aluminum frame housing

Remarks

*Recommended tightening torque: 2.3 N·m

*Do not use power tools to tighten or remove.

*Spacer (CP-950-30-SP) sold separately.

*When removing, turn the bolt all the way.

*Please contact us for other aluminum frames.
