Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FA-630

The rod moves vertically—up and down by 23mm—to securely lock or unlock the door.
The lock status is easy to identify: green indicates it’s locked, while red shows it’s unlocked.
An arrow clearly shows the handle’s operating direction, making it intuitive to use.
You can adjust the rod’s attachment position to suit your installation needs.

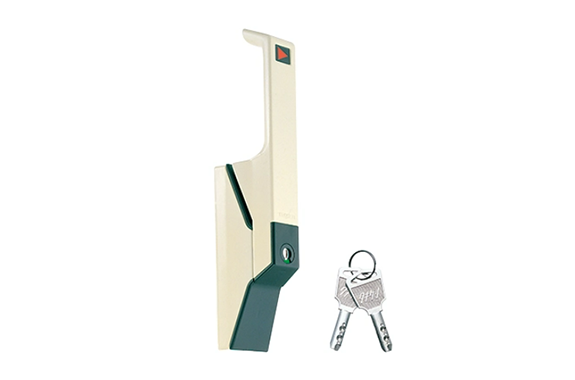

The mechanism also supports both right-handed and left-handed rotation—this diagram and photo show the right-handed version as an example.
