Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FB-1729N-2-ML-R

Features

Copper and zinc are not used as materials.
A multi-axis hinge for airtight sealing with a metal touchless structure that eliminates metal rotation and sliding.
The bearing section uses a high-strength, high-performance synthetic resin.
The two-axis mechanism tightens the door horizontally by up to 5 mm. (A separate tightening mechanism is required.)
The rotation angle can be changed by removing the included stopper. (See rotation example.)
Made of stainless steel for excellent corrosion resistance.

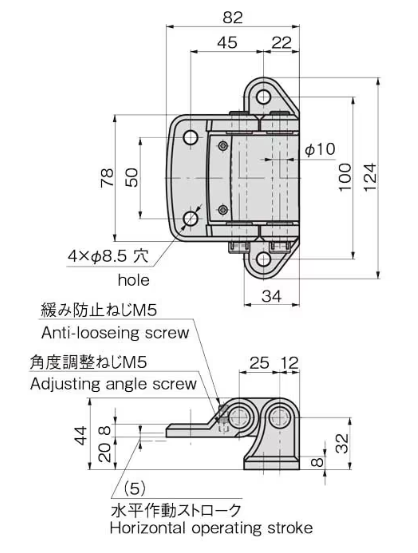

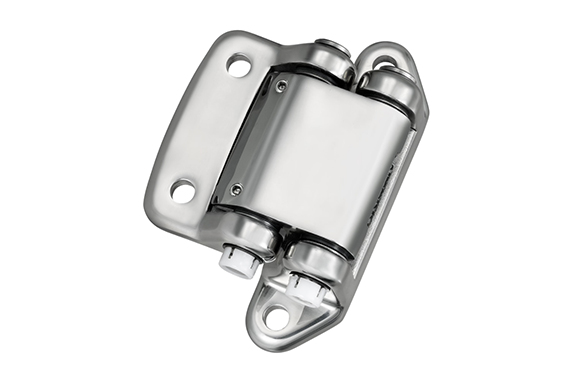

Right-hand and left-hand types (The photo and drawing show the right-hand type.)

Specification

●Material:

Body: Stainless steel casting (SUS304)

, Bearing: Synthetic resin

Resin cap: Polyacetal (POM)

●Surface finish: Buffed

Purpose

Vacuum chamber equipment, airtight equipment doors,

air conditioning equipment
