Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FC-783-A-Si

Features

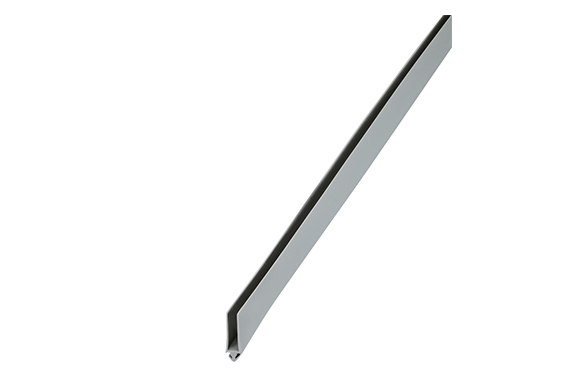

The sliding door gasket (FC-783-A-Si) is made from food hygiene compliant materials.
It seals the door securely., It has excellent heat and cold retention properties.
It can be cut to the required dimensions.

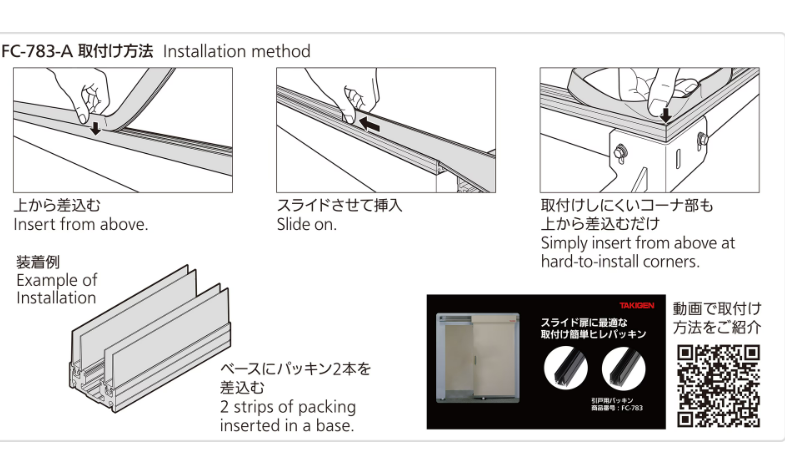

The sliding door gaskets (FC-783-A-Si, FC-783-A) can be inserted into the aluminum base (FC-783-B) and resin base (FC-783-C).
Use the aluminum base (FC-783-B) in the freezer and the resin base (FC-783-C) in the refrigerator.
Heat retention can be improved by attaching a heater wire to the aluminum base (FC-783-B) and using the dedicated cover.

Specification

●MaterialsFC

-783-Si: SiliconeFC

-783-A: Elastomer (TPS)

FC-783-B: Aluminum alloy extrusion (A6063S-T5)

FC-783-C: Polyvinyl chloride (PVC)

●Surface finishFC

-783-B: Anodized

●Ambient operating temperatureFC

-783-A-Si: -30 to +150°C

FC-783-A: -50 to +60°C

●Length of one piece: Packing 1m, Base 2m

Purpose

●Refrigerator-freezer

Remarks

*Please contact us for covers specifically for the FC-783-B.

*Maximum length for FC-783-A-Si and FC-783-A: 50m (sold in 1m increments)

*Please specify the length and quantity when ordering.

*Orders outside the maximum length are not eligible for return.
