Takigen

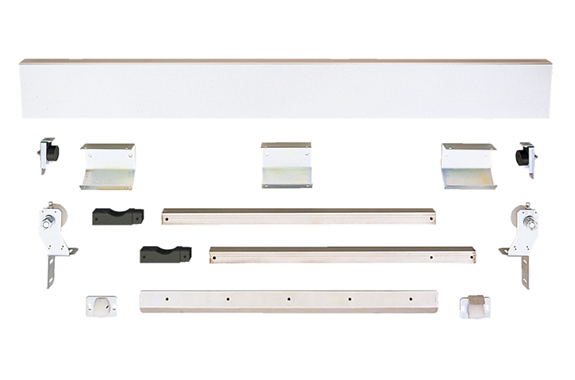

Takigen FD-150N Sealed Sliding Door Hardware Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FD-150N
Features
Easy to install in narrow spaces.
Ideal for large entrances and exits.
Reliable sealing .
Simple mechanism makes handling easy and reduces malfunctions.
No rails, grooves or steps are required on the floor.
Light and smooth opening and closing movement (not affected by dirt or foreign matter).
The cover has a sleek design that covers the entire rail.
Can use on both the left and right sides (the illustration shows the right-hand pull type).
Specification
●Material:
Cover: Aluminum alloy (A1100)
Rail: Stainless steel pipe (SUS304), Stainless steel plate (SUS304)
Bracket/hanger: Hot-rolled steel plate (SPHC)
Cover: Aluminum alloy (A1100)
Rail: Stainless steel pipe (SUS304), Stainless steel plate (SUS304)
Bracket/hanger: Hot-rolled steel plate (SPHC)
Purpose
Prefabricated refrigerators and heat-insulating doors
Remarks
● Use in combination with the dedicated handle FD-150-H and dedicated gasket FC-781-1.
● Decorative covers are also available in other colors. (Standard color: Silver)
Sliding (double-door) types are also available.
Can also be used for freezer doors. (Please consult separately.)
Spacers for stepped doors (step-in specifications) are also available.
A joint (FD-150-RJ) that can be used for both ends and middle doors is also available.
To ensure long-term use of this product, please periodically apply lubricant to the sliding parts.
● Decorative covers are also available in other colors. (Standard color: Silver)
Sliding (double-door) types are also available.
Can also be used for freezer doors. (Please consult separately.)
Spacers for stepped doors (step-in specifications) are also available.
A joint (FD-150-RJ) that can be used for both ends and middle doors is also available.
To ensure long-term use of this product, please periodically apply lubricant to the sliding parts.
