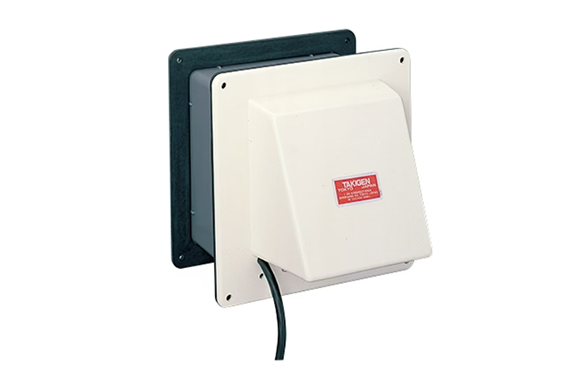

Takigen FE-602 Ventilator (Large Pressure Regulating Valve) Series
Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FE-602 Series
Features
Adjusts the internal air pressure due to contraction and expansion that occurs during freezing and defrosting

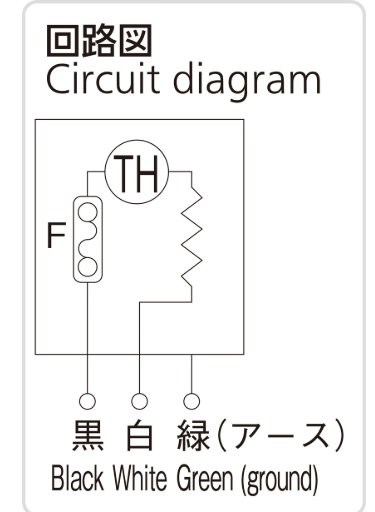

Includes a heater to prevent freezing (uses a thermostat to prevent overheating) (cuts +60°C)
Includes insect netting
Power cord is located outside the cabinet, making installation easy
Exhaust and intake capacity is approximately three times that of the previous model (FE-603)
Panel thickness can be adjusted using a sliding mechanism, freely within the range of 85 to 150 mm
Exhaust and intake units are separate (sold separately), allowing for flexible combinations of units
Specification
●Material:
Surface louver/Polyvinyl chloride (PVC)
Valve unit frame/Aluminum plate
●Operating temperature: -50 to +60°C
●Heater rated voltage: AC100V
●Heater power consumption: Exhaust 36W, Intake 36W
●Initial operating pressure: 32pa
●Maximum operating pressure: 253pa
●Max suction (exhaust) rate: 0.126m3/sec
●Maximum opening area: 76cm2
●Applicable plate thickness: 85 to 150mm
Surface louver/Polyvinyl chloride (PVC)
Valve unit frame/Aluminum plate
●Operating temperature: -50 to +60°C
●Heater rated voltage: AC100V
●Heater power consumption: Exhaust 36W, Intake 36W
●Initial operating pressure: 32pa
●Maximum operating pressure: 253pa
●Max suction (exhaust) rate: 0.126m3/sec
●Maximum opening area: 76cm2
●Applicable plate thickness: 85 to 150mm
Purpose
– Airtight enclosures for prefabricated refrigerators and warmers
Remarks
Do not connect an anti-freeze heater when using at temperatures above 0°C.
This product uses amorphous resin material, which is not compatible with anti-loosening agents, so please avoid using it. (This is also stated in the precautions for some anti-loosening agents.)
This product uses amorphous resin material, which is not compatible with anti-loosening agents, so please avoid using it. (This is also stated in the precautions for some anti-loosening agents.)
