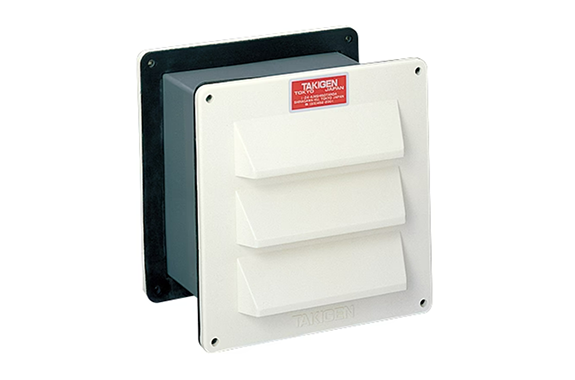

Takigen FE-603 Ventilator (Pressure Adjustment Valve) Series

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FE-603

Features

Adjusts internal air pressure due to contraction and expansion that occurs during freezing and defrosting

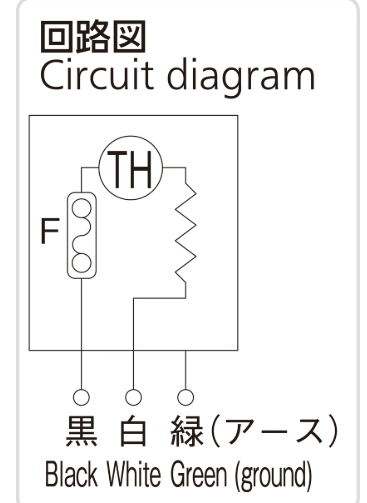

Comes with a heater to prevent freezing (uses a thermostat to prevent overheating)
Comes with an insect net
Power cord is located outside the cabinet, making installation easy
The panel thickness can be adjusted using a sliding mechanism, choose from 85-150mm (FE-603-1) or 50-85mm (FE-603-2).
The surface louvers are made of polyvinyl chloride resin, eliminating dents during transport.

FE-603 FE-603

Specification

Material:
Surface louver/Polyvinyl chloride (PVC)
frame/Vinyl chloride resin
valve unit frame/Aluminum plate
Ambient temperature during use: -30 to +60°C
Heater rated voltage: AC100V
Heater power consumption: 36W
Initial operating pressure: 112pa
Maximum operating pressure: 392pa
Max intake (exhaust) rate: 0.05m3/sec
Maximum opening area: 36cm2

Purpose

Airtight enclosures for prefabricated refrigerators and warmers

Remarks

The previous product number FE-603 has been changed to FE-603-1 due to a product number change.

When using at temperatures above 0°C, do not connect the anti-freeze heater.

A rated voltage of AC220V can also be manufactured upon order. (Compatible with AC200V to 220V)

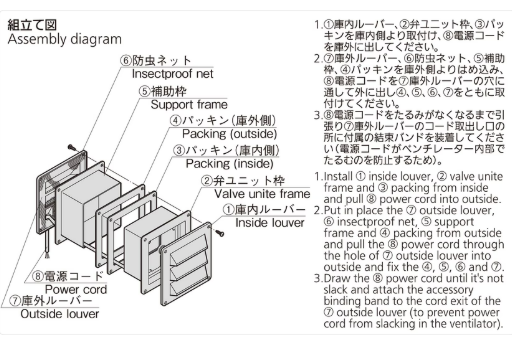

When installing, make sure the valve unit frame faces the inside of the cabinet.

Be sure to attach the included insect net to the outside of the cabinet.

After installation, attach the included cable tie to the cord outlet on the exterior louver to prevent the power cord from sagging.

This product uses an amorphous resin material and is not compatible with locking agents, so please avoid using them. (This is also stated in the precautions for some locking agents.)
