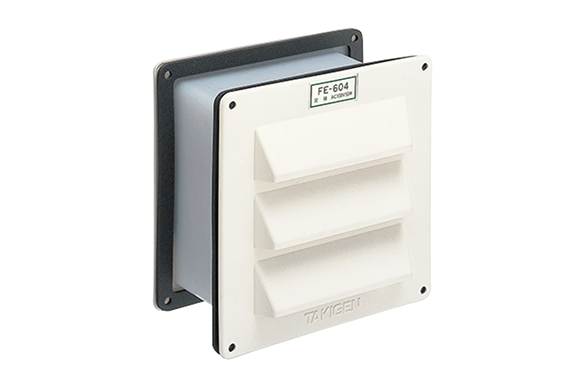

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: FE-604

Features

Intake and exhaust efficiency has been improved by over 40% compared to the previous ventilator FE-603.
Adjusts internal air pressure due to contraction and expansion that occurs during freezing and defrosting.

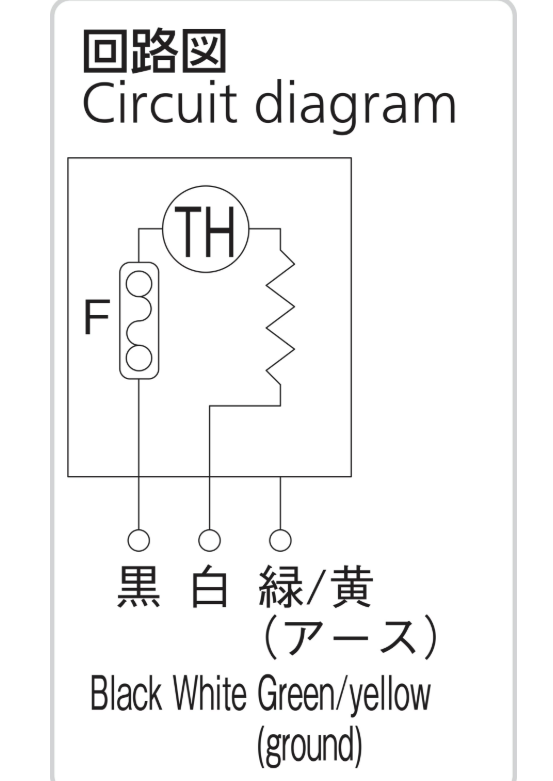

Comes with an anti-freeze heater (uses a thermostat to prevent overheating).
Comes with an insect net.
Power cord is located outside the cabinet, making installation easy.
Panel thickness can be adjusted freely between 85mm and 150mm using a sliding mechanism.
Surface louvers are made of polypropylene, eliminating dents during transport.

Specification

●Material:

Surface louver and frame: Polypropylene (PP),

valve unit frame: Aluminum plate

●Ambient temperature during use: -40 to +60°C

●Heater rated voltage: AC100V

●Heater power consumption: 36W

●Initial operating pressure: 15.6pa

●Maximum operating pressure: 196pa

●Max intake (exhaust) volume: 0.04m3/sec

●Maximum opening area: 50cm2

Purpose

Airtight enclosures for prefabricated refrigerators and warmers

Remarks

Do not connect the anti-freeze heater when using at temperatures above 0°C.

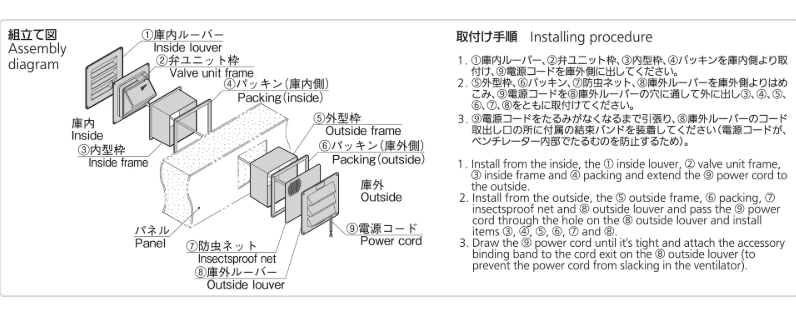

When installing, make sure the valve unit frame faces the inside of the cabinet.
Be sure to attach the included insect net to the outside of the cabinet.
