Manufacturer: TAKIGEN MFG.CO.,LTD.

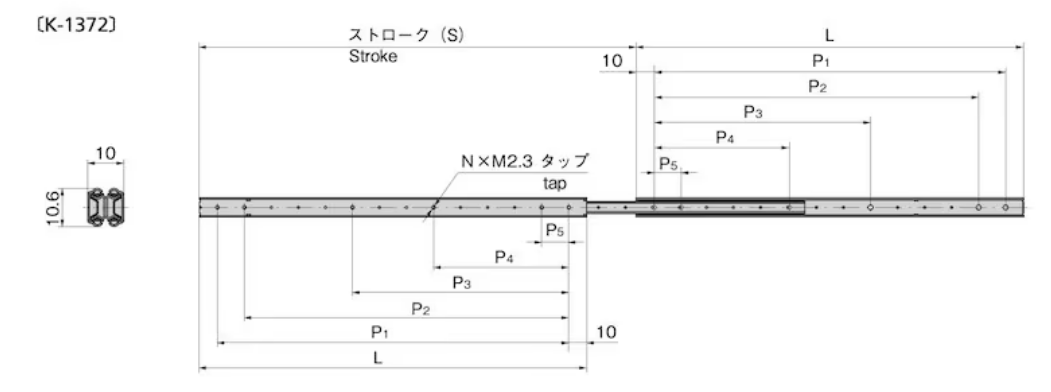

Model: K-1372

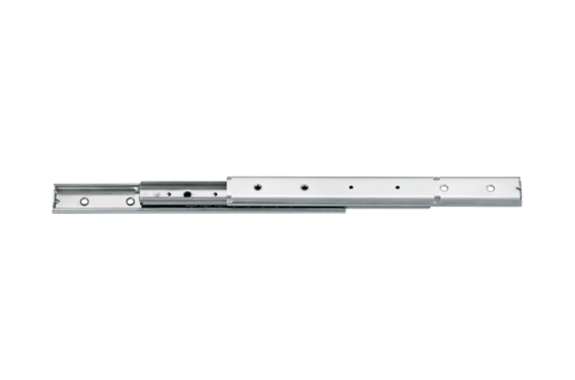

Ultra-compact and can be used for sliding mechanisms of various small parts.
The sliding part uses ball bearings for smooth movement.
Made of stainless steel for excellent corrosion resistance.

Specification

●Material: Cold-rolled stainless steel plate (SUS304)

Purpose

●Precision equipment, measuring equipment, testing equipment

Remarks

●For installation, use M2.3 pan head screws or precision equipment cross recessed pan head screws.

●The length of the installation screws should be the thickness of the installation part + 1.0 to 1.8 mm. (K-1371 is for the inner member only)

●To ensure long-term use of this product, please periodically apply lubricant to the sliding parts. (Recommended lubricant: lithium-based grease)
