Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: K-350

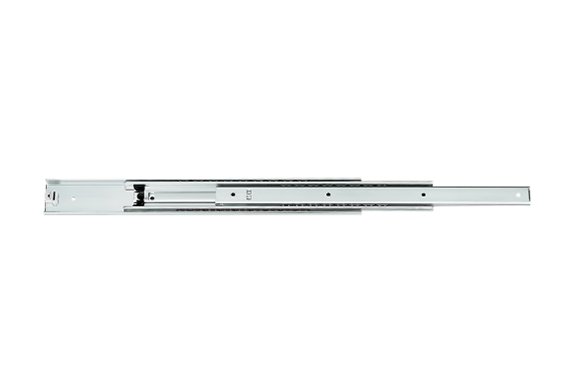

● Compact slide rail designed for heavy loads.
● It is held in place by a stopper when stored.
● The sliding section uses ball bearings for smooth movement.

Specification

●Material: Cold-rolled steel plate (SPCC)

●Surface finish: Zinc-plated chromate treatment (MFZn-C)

Purpose

●Computer peripherals and office equipment

Remarks

●Use M5 truss screws or binding machine screws for installation.

●To ensure long-term use of this product, please periodically apply lubricant to the sliding parts. (Recommended lubricant: lithium soap-based extreme pressure grease)

●When using with bottom pulling, the allowable load is 1/4.
