Manufacturer: TAKIGEN MFG.CO.,LTD.

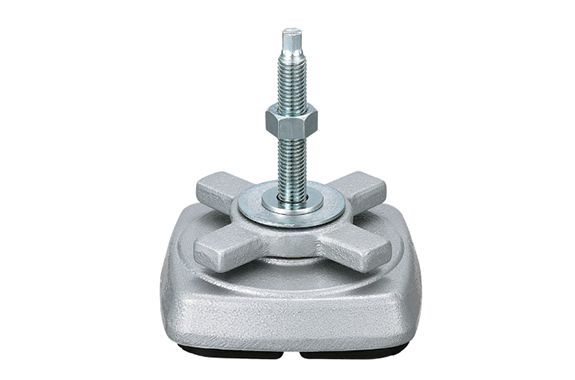

Model: K-360

Features

Its compact body and easy installation prevent vibration, shock, and noise from machines and equipment.
The use of special rubber keeps the contact area clean and provides excellent oil resistance and durability.
The handle makes level adjustment easy.
It can be installed to match the floor gradient (±3 degrees).
The Y type uses HDR for even greater damping effect.

Specification

●Material:

Anti-vibration rubber / K-360 / Chloroprene rubber

K-360-Y / HDR rubber (high damping rubber)

Housing / Gray cast iron (FC250)

Shaft and washer / SS400

●Finish:

Housing / K-360 / Melamine baked finish

(silver)

K-360-Y / Melamine baked finish

(yellow)

Shaft and washer / Zinc plated chromate treatment (MFZn-C)
