Manufacturer: TAKIGEN MFG.CO.,LTD.

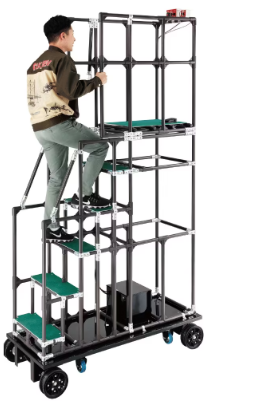

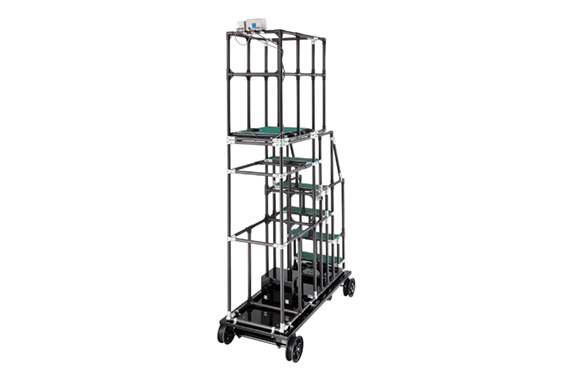

Model: K-695-T

Features

Developed for use in greenhouses.
Stairs with handrails are used for boarding and disembarking, reducing the burden on the worker.
Automatic travel on pipe rails at the desired speed improves stability and work efficiency.
Powered lateral wheels allow for easy movement between furrows.

Specification

[Workbench]

●Size (mm): Approx. 450 x 600

●Height (mm): 1,900

●Maximum weight (kg): 100

[Battery]

●Model: 40B19L x 2 ●Voltage: 24V

●Motor output: 150W

[Body]

●Product weight (kg): 150

●Applicable rail diameter (mm): φ31.8

●Rail pitch (mm): 600 ●Drive system: Rear wheel chain drive

Remarks

For more information on the single-pipe rail system, please see pages 62 onwards.

Please use concrete or boards to firmly solidify the pathway.

As it is made up of pipe units, the height and shape can be customized. Please contact us.

A safety bar (sold separately) can be attached.
