Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: K-800-1

Features

The arm can be adjusted up and down 63° and left and right 360°, and the monitor can be swiveled at 95° up and down and 60° left and right.

It is a spring-balanced system.

This product is set to fit a 5kg monitor.

Specification

●Material: Body: Electro-galvanized steel plate (SEC)

, Shaft: Stainless steel plate (SUS304)

, Cover: ABS resin

, Base: Polyacetal (POM)

Purpose

●Medical equipment, computer peripherals, machine tools

Remarks

We can also manufacture mounting brackets and other items to suit your needs.

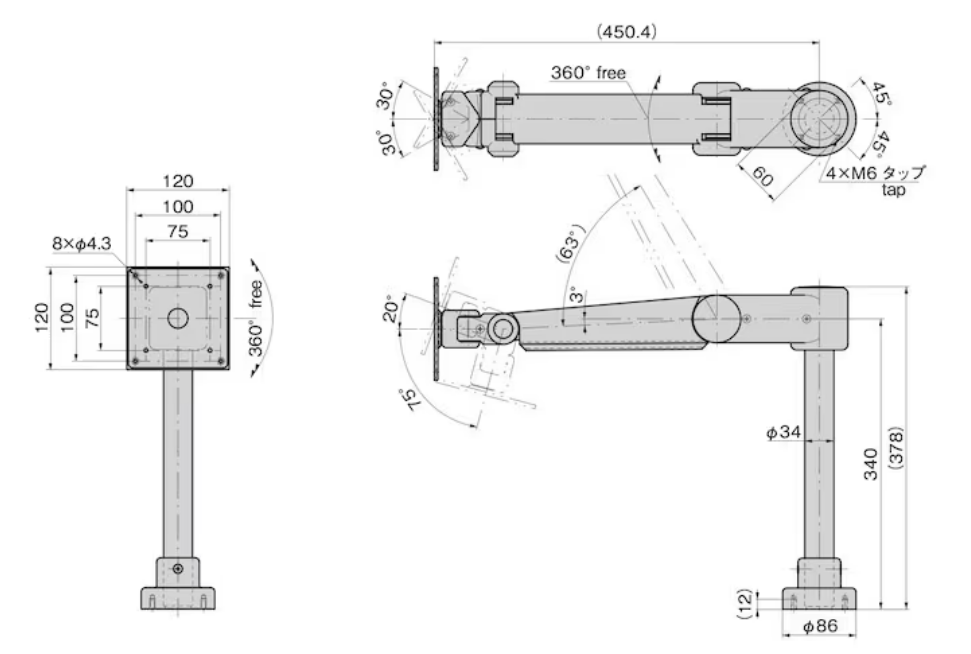

The product in the drawing is set for a monitor weighing 5 kg.

Since it is stationary due to the frictional resistance of the metal, there will be a difference of about ±15% in the operating feel at the specified load. We appreciate your understanding.

The reaction force can be adjusted depending on the load of the monitor attached to the tip. Please contact us.
