Manufacturer: TAKIGEN MFG.CO.,LTD.

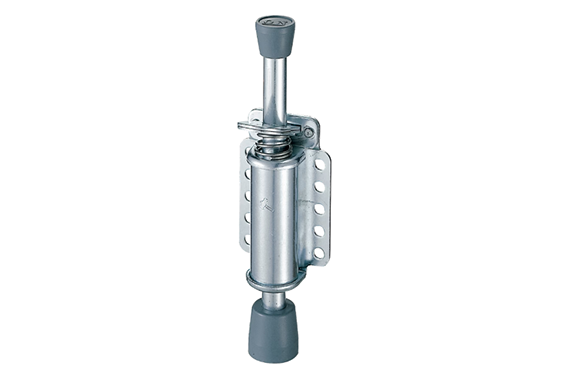

Model: K-900A

Features

● Compact and lightweight, it can be used in a wide range of applications.
● Side mounting type
● It can be locked securely even on slightly uneven floors.

Specification

●Material: Body: Hot-rolled steel plate (SPHC),

Contact area: Rubber

●Surface finish: Zinc-plated chromate treatment (MFZn-C)

Purpose

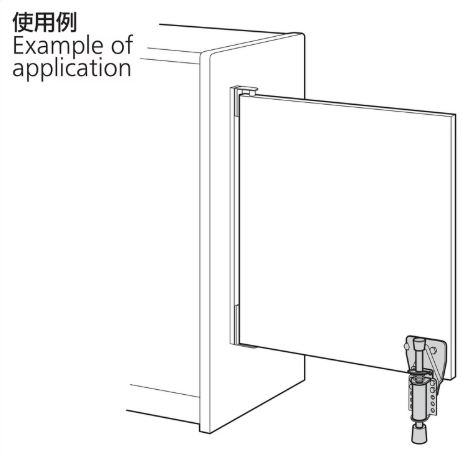

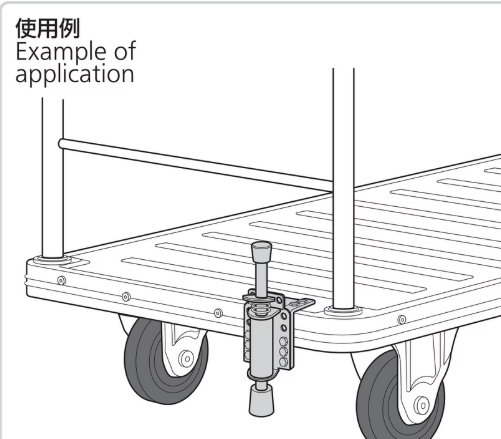

Doors, gates, transport equipment, office equipment, and other movement prevention devices

Remarks

When unlocked, install the base rubber so that there is a gap of approximately 25 to 30 mm between the floor surface and the base rubber.

There are five mounting holes on the left and right, so select the appropriate holes and install using bolts or screws.
