Manufacturer: TAKIGEN MFG.CO.,LTD.

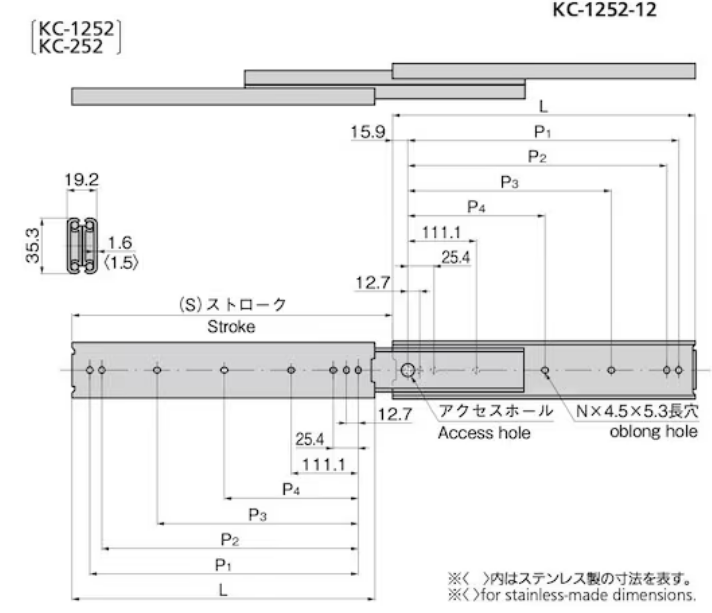

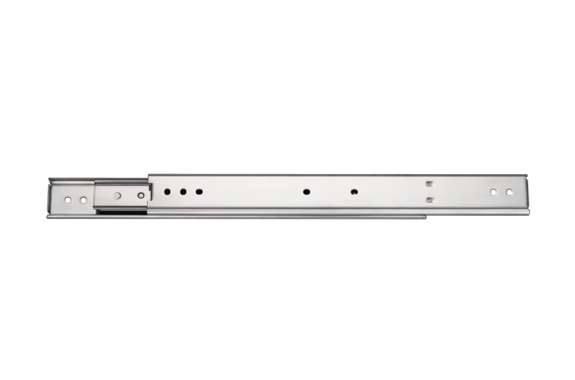

Model: KC-1252

Specification

●Material: Stainless steel plate (SUS304)

Purpose

Medical equipment, food machinery, and environmental equipment

Remarks

●Use M4 binding machine screws or truss machine screws for installation.

●We also manufacture the removable type KC-252-A.

●To ensure long-term use of this product, please periodically apply lubricant to the sliding parts. (Recommended lubricant: lithium soap-based extreme pressure grease)

●When using with bottom pulling, the allowable load is 1/4.
