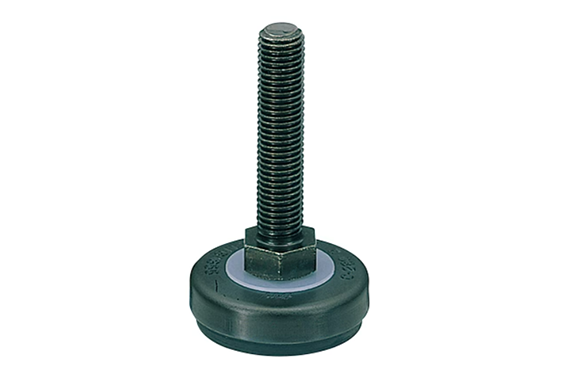

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: KC-280

The rubber base is make of flame-retardant material (UL94 V-0 compliant).
The rubber base is non-migratory.
There is a cross cut on the back of the screw for a Phillips head screwdriver, making installation easy.
The shaft is one-piece, making it excellent in load and impact resistance.

Specification

●Material: Shaft: Cold heading carbon steel wire (SWCH)

, Cover: Cold rolled steel plate (SPCC),

Bottom: Ethylene propylene rubber

(EPDM)

●Surface finish: Shaft and cover: Zinc plated black chromate treatment (MFZn-C)

●Hardness: 80°±5°

Remarks

●Dimensions other than those listed in the table can also be manufactured.

●The bottom can also be manufactured using silicone rubber.
