Manufacturer: TAKIGEN MFG.CO.,LTD.

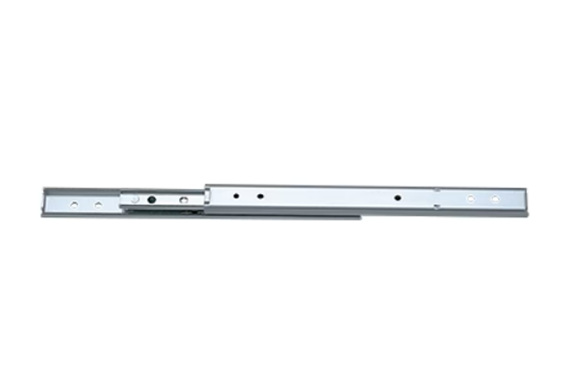

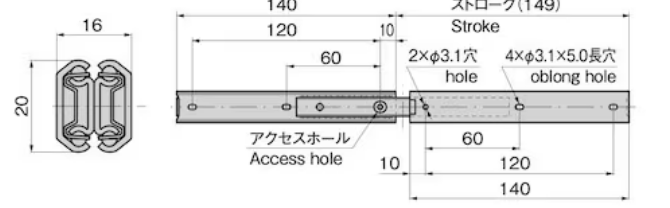

Model: KC-284

● Compact and lightweight, it can be used with a variety of devices.
● The sliding section uses ball bearings for smooth movement.

Specification

●Material: Cold-rolled steel plate (SPCC)

●Surface finish: Zinc-plated chromate treatment (MFZn-C)

Purpose

●Various housings for communication equipment, office equipment, testing equipment, etc.

Remarks

●For the aluminum KC-362, please refer to page 1669.

●Use M3 binding machine screws or truss machine screws for installation.

●To ensure long-term use of this product, please periodically apply lubricant to the sliding parts. (Recommended lubricant: lithium soap-based extreme pressure grease)

●When using with bottom pulling, the allowable load is 1/4.
