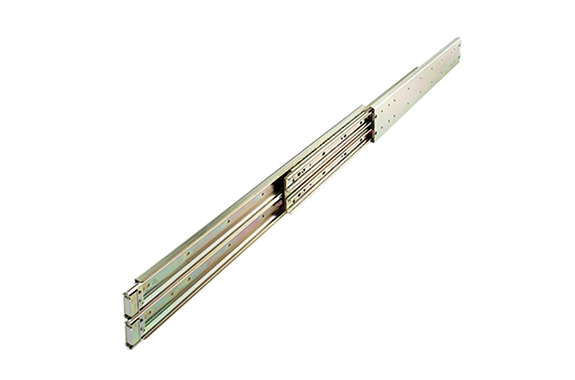

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: KC-353-WW

● By using roll forming processing, it is lighter than conventional heavy-duty slide rails and has better load-bearing capacity.

Specification

●Material: Cold-rolled steel (SPCC)

●Surface finish: Zinc-plated chromate treatment (MFZn-C)

Purpose

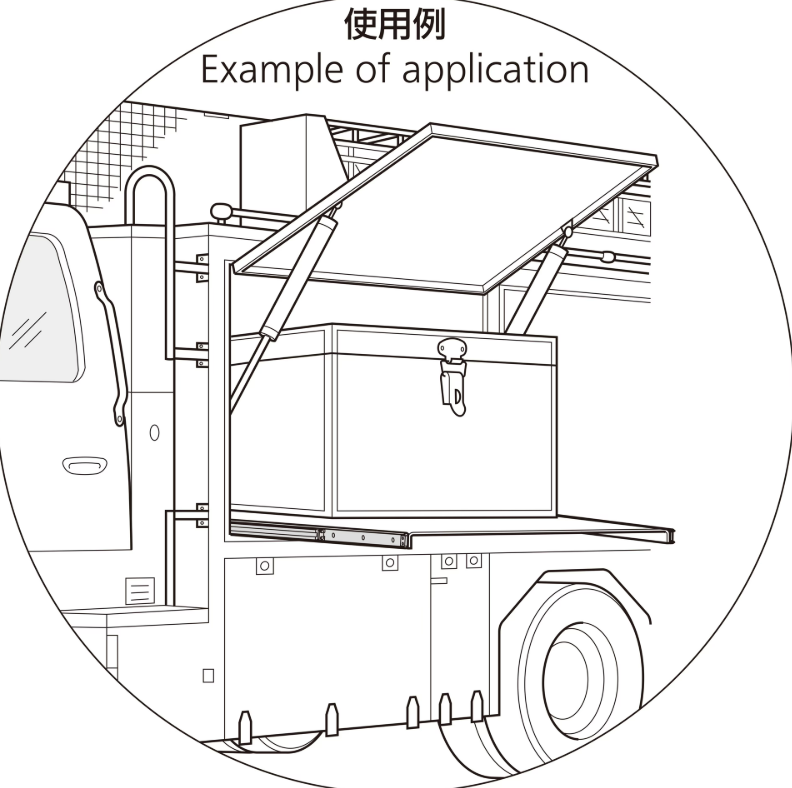

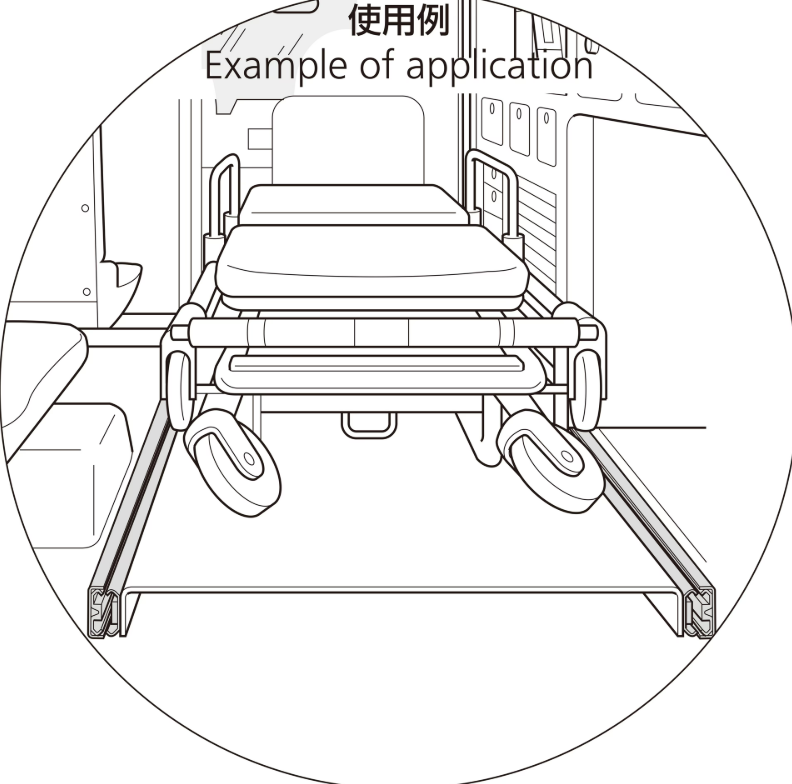

Specially equipped vehicles, construction machinery, and buses

Remarks

●As this product is heavy, we recommend using M6 (hex socket bolts) for strong tightening force when installing. Spring washers and other bolts cannot be used as the bolt heads will interfere with the interior of the slide rail.

●The installation direction is important. Install the cabinet member on the housing side and the drawer member on the drawer side.

●To ensure long-term use of this product, we recommend periodically applying lubricant to the sliding parts. (Recommended lubricant: lithium soap-based extreme pressure grease)
