Manufacturer: TAKIGEN MFG.CO.,LTD.

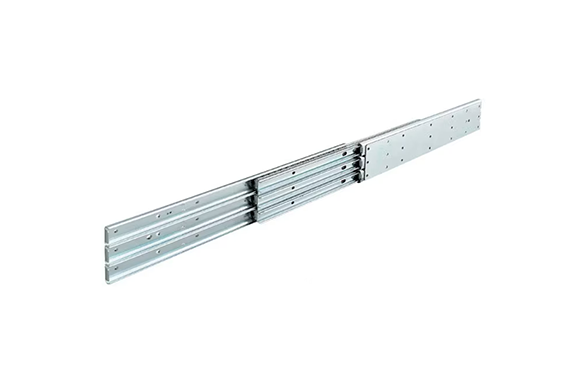

Model: KC-411

● The sliding section uses ball bearings for smooth movement.
● Compared to conventional products, it can be used for heavier objects.

Specification

●Material: Cold-rolled steel plate (SPCC)

●Surface finish: Zinc-plated chromate treatment (MFZn-C)

Purpose

Specially equipped vehicles, construction machinery, and kitchen equipment

Remarks

●Use M4 binding machine screws or truss machine screws for installation.

●To ensure long-term use of this product, please periodically apply lubricant to the sliding parts. (Recommended lubricant: lithium soap-based extreme pressure grease)

●When using with bottom pulling, the allowable load is 1/4.
