Manufacturer: TAKIGEN MFG.CO.,LTD.

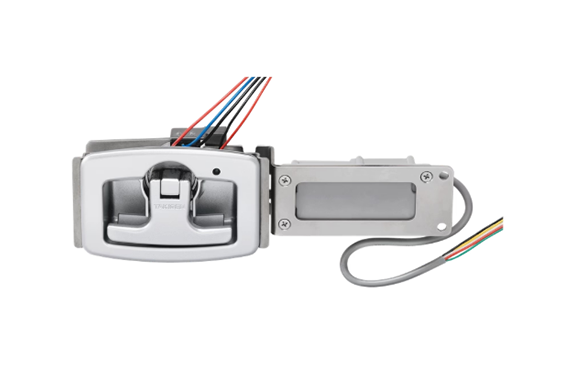

Model: LE-272-24V

Features

The actuator controls the locking and unlocking of the handle.
Can be linked (energized) to the vehicle key system for use.
The locking and unlocking status can be displayed with an LED.
The latch plate lifts 6 mm when the handle is retracted.
The direction of handle rotation can be changed.
Locking and unlocking can be managed using a microswitch.

Specification

●Material:

Body: Zinc alloy (ZDC), stainless steel (SUS), etc.

Actuator cover: Polypropylene (PP/G35%)

Surface finish: Silver metallic baked paint

Applicable plate thickness: 1.5mm to 3.2mm

Accessories: Microswitch, dedicated stopper plate, packing, mounting screws

Ambient operating temperature: 0 to +50°C (do not freeze)

Purpose

Specially equipped vehicles, construction machinery, etc.
