Manufacturer: TAKIGEN MFG.CO.,LTD.

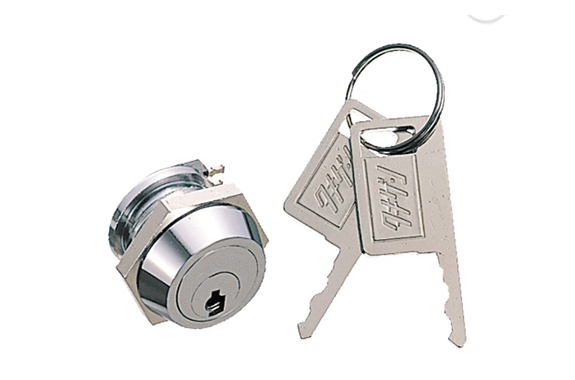

Model: S-10-90-B-1

● The smallest key switch among cylinder locks.
● Three types of signal circuits can be connected.

Specification

●Material: Body/Free-cutting brass bar (C3604BD)

Key/Brass plate (C3713P)

●Finish: Body/Chrome plating (MBCr)

Key/Nickel plating (MBNi)

●Accessories: 2 keys

●Product weight: Lock 33g, microswitch 0.3g

Purpose

●Computer peripherals, small special telephones, walkie-talkies, and security equipment for crime prevention and disaster prevention

Remarks

●We also manufacture different key types.

●S-10-90-B-2 and S-10-90-B-3 are discontinued products.
