Manufacturer: TECHNO ELECTRIC Co.,Ldt.

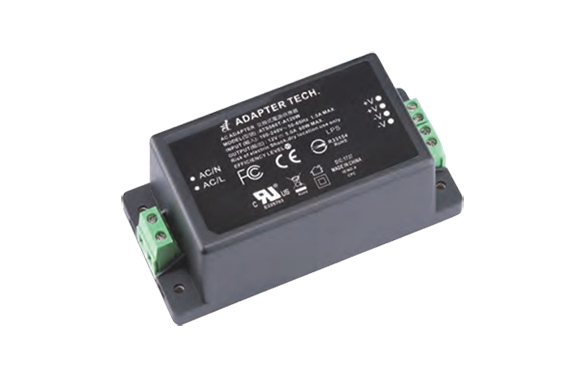

Model: ATS060T-Axxx□
Features
- IEC/UL 62368-1 & IEC 60950-1
- 100-240VAC Universal Input
- Regulated Output With Low Ripple Noise
- Safety Agency Requirements and EMI/EMS Certified
- Private Label Marking Available
- Modified and Custom Design Available
- 1 Year Warranty
Green Mode
- CEC, DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI
- No Load Power Consumption Less Than 0.15W
Specification
| Model | O/P Voltage | O/P Current | Watt |
|---|
| ATS060T-A120□ | 12.0V | 5.00A | 60W |
| ATS060T-A150□ | 15.0V | 4.00A | 60W |
| ATS060T-A190□ | 19.0V | 3.15A | 60W |
| ATS060T-A240□ | 24.0V | 2.50A | 60W |
| ATS060T-A480□ | 48.0V | 1.25A | 60W |
| Input | Specification |
|---|
| Voltage | 100-240VAC |
| Line Frequency | 50-60Hz |
| Current | 1.5A Max. |
| Protection | Internal Primary Current Fuse |
| Output | Specification |
|---|
| Load Regulation | ±5% (Typical) |
| Ripple & Noise | 1% Vp-p Max. for Output Voltage @ Full Load |
| Transient Response | 0.5ms for 50% Load Change Typical |
| Hold-up Time | 10ms @ Full Load |
| Protection | Short Circuit Protection / Over Voltage Protection / Over Current Protection |
| Safety Approvals |
|---|
| CB / UL / cUL / FCC / CE / LPS |
| Electrical | Specification |
|---|
| Topology | Switching Flyback |
| Dielectric Withstand | 3000VAC Primary – Secondary |
| Leakage Current | 0.25mA |
| Efficiency | DoE Level VI, Energy Star, ErP Stage 2, CoC Tier 2, NRCan & GEMS Level VI Certified |
| EMC Standards | EN55032, EN61000-3-2,3, EN55024 |
| MTBF | 300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
| Electrical | Specification |
|---|
| Operating Temperature | 0 to +40°C |
| Storage Temperature | -20 to +80°C |
| Relative Humidity | Operating: 20 to 80% RH |
| Storage: 10 to 90% RH |
| Cooling | Natural Convection Cooling |
| Mechanical | Specification |
|---|
| Case Dimension | P – L 87 x W 52 x H 30.3 (mm) |
| W – L 109 x W 52 x H 33.5 (mm) |
| Weight | 235g (Ref.) |
