THING TECH CO., LTD.
Thing Tech AJL/ AJH Series Aluminum JB Arm
Manufacturer: THING TECH CO., LTD.
Model: AJL/ AJH Series
Arm
An introduction to our Arm product group, starting with the user-friendly T-Arm.
These are extremely useful pieces of equipment, effective in loading assistance and various operational scenarios.
Used in These Applications
- Move products while lifting them.
- Rotate and balance adjust products, such as between assembly lines.
- Lift products easily.
 |  |  |  |
| Slider Ace 80H | Arm Installation Image | 350 kg Electric Arm | Seat Hook/Catch |
JB Arm
Shin-Tech’s JB Arm uses aluminum or steel rails. It reduces the operator’s burden regarding light sliding movement and swiveling. In combination with the Knight Air Balancer or Slider Ace, three-dimensional conveyance and transfer are possible even in locations without overhead suspension space.
- The JB Arm Series lineup features load capacities ranging from 60 kg to 500 kg.
- This product was developed by our company and is a purely Japanese-made product.
- We handle everything from design to manufacturing and installation work.
- A rich variety of options are available.
- We deliver products that meet the customer’s working environment and needs.

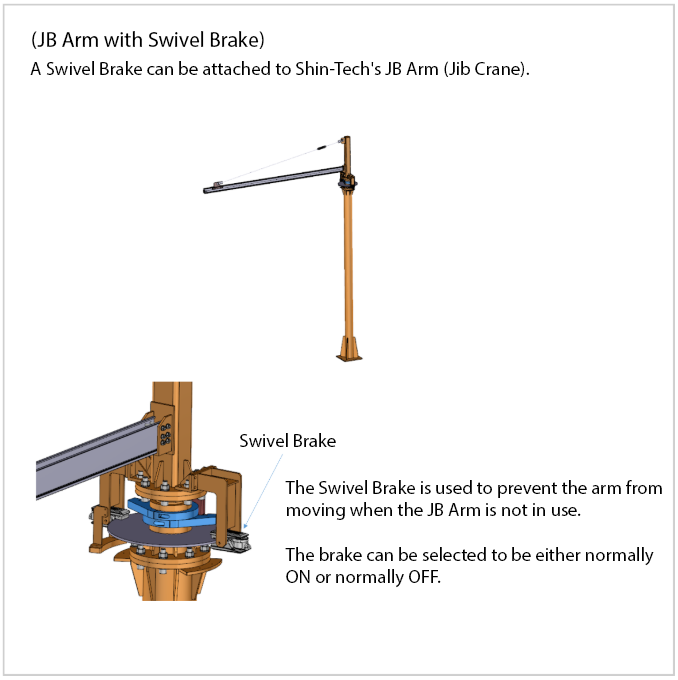

Swivel Brake for JB Arm

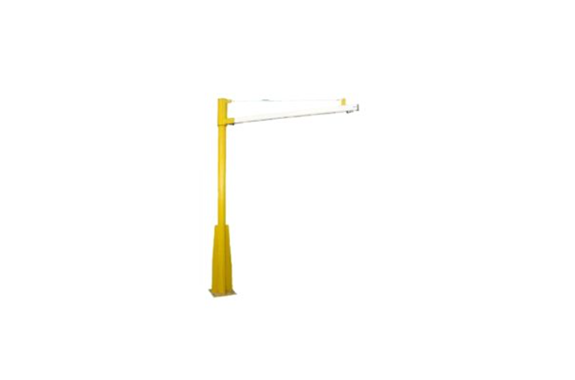

Aluminum JB Arm
It reduces the operator’s burden regarding light sliding movement and swiveling. In combination with the Knight Air Balancer or Slider Ace, three-dimensional conveyance and transfer are possible even in locations without overhead suspension space.
The JB Arm Series lineup features load capacities ranging from 60 kg to 500 kg.
This product was developed by our company and is a purely Japanese-made product. We handle everything from design to manufacturing and installation work.
A rich variety of options are available, and we deliver products that meet the customer’s working environment and needs.

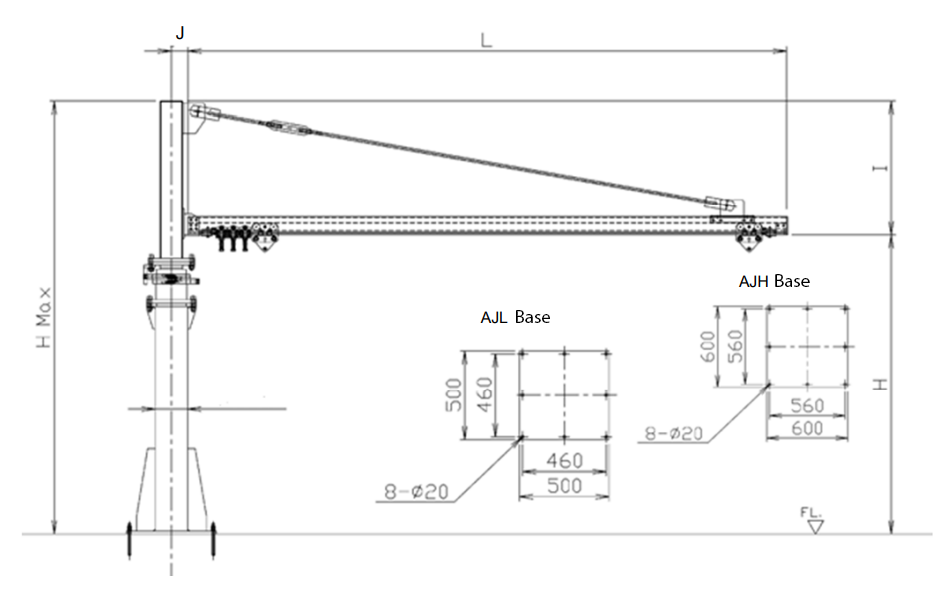

| Specifications (150kg Use) | Specifications (250kg Use) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Max Load (kg) | H Max (mm) | I (mm) | J (mm) | L (mm) | Overturning Moment (kN·m) | Model | Max Load (kg) | H Max (mm) | I (mm) | J (mm) | L (mm) | Overturning Moment (kN·m) |
| AJL-2 20-300 | 300 | 2,700 | 700 | 95 | 2,000 | 15.0 | AJH-2 20-400 | 400 | 2,700 | 700 | 110 | 2,000 | 19.9 |
| AJL-2 25-280 | 280 | 3,200 | 700 | 95 | 2,000 | 14.0 | AJH-2 25-400 | 400 | 3,200 | 700 | 110 | 2,000 | 19.9 |
| AJL-2 30-265 | 265 | 3,700 | 700 | 95 | 2,000 | 13.3 | AJH-2 30-400 | 400 | 3,700 | 700 | 110 | 2,000 | 19.9 |
| AJL-2 35-250 | 250 | 4,200 | 700 | 95 | 2,000 | 12.5 | AJH-2 35-400 | 400 | 4,200 | 700 | 110 | 2,000 | 19.9 |
| AJL-2 40-230 | 230 | 4,700 | 700 | 95 | 2,000 | 11.5 | AJH-2 40-300 | 300 | 4,700 | 700 | 110 | 2,000 | 15.0 |
| AJL-3 20-170 | 170 | 2,900 | 900 | 95 | 3,000 | 13.1 | AJH-3 20-250 | 250 | 2,900 | 900 | 110 | 3,000 | 19.0 |
| AJL-3 25-170 | 170 | 3,400 | 900 | 95 | 3,000 | 13.1 | AJH-3 25-250 | 250 | 3,400 | 900 | 110 | 3,000 | 19.0 |
| AJL-3 30-150 | 150 | 3,900 | 900 | 95 | 3,000 | 11.6 | AJH-3 30-250 | 250 | 3,900 | 900 | 110 | 3,000 | 19.0 |
| AJL-3 35-130 | 130 | 4,400 | 900 | 95 | 3,000 | 10.1 | AJH-3 35-205 | 205 | 4,400 | 900 | 110 | 3,000 | 15.6 |
| AJL-3 40-110 | 110 | 4,900 | 900 | 95 | 3,000 | 8.7 | AJH-3 40-170 | 170 | 4,900 | 900 | 110 | 3,000 | 13.1 |
| AJL-4 20-90 | 90 | 2,900 | 900 | 95 | 4,000 | 9.8 | AJH-4 20-120 | 120 | 2,900 | 900 | 110 | 4,000 | 12.8 |
| AJL-4 25-90 | 90 | 3,400 | 900 | 95 | 4,000 | 9.8 | AJH-4 25-120 | 120 | 3,400 | 900 | 110 | 4,000 | 12.8 |
| AJL-4 30-80 | 80 | 3,900 | 900 | 95 | 4,000 | 8.9 | AJH-4 30-120 | 120 | 3,900 | 900 | 110 | 4,000 | 12.8 |
| AJL-4 35-70 | 70 | 4,400 | 900 | 95 | 4,000 | 7.9 | AJH-4 35-105 | 105 | 4,400 | 900 | 110 | 4,000 | 11.3 |
| AJL-4 40-60 | 60 | 4,900 | 900 | 95 | 4,000 | 6.9 | AJH-4 40-90 | 90 | 4,900 | 900 | 110 | 4,000 | 9.8 |
| AJL-5 20-60 | 60 | 2,900 | 900 | 95 | 5,000 | 6.9 | AJH-5 20-80 | 80 | 2,900 | 900 | 110 | 5,000 | 11.4 |
| AJL-5 25-60 | 60 | 3,400 | 900 | 95 | 5,000 | 6.9 | AJH-5 25-80 | 80 | 3,400 | 900 | 110 | 5,000 | 11.4 |
| AJL-5 30-50 | 50 | 3,900 | 900 | 95 | 5,000 | 6.5 | AJH-5 30-80 | 80 | 3,900 | 900 | 110 | 5,000 | 11.4 |
| AJL-5 35-40 | 40 | 4,400 | 900 | 95 | 5,000 | 6.5 | AJH-5 35-70 | 70 | 4,400 | 900 | 110 | 5,000 | 10.2 |
| AJL-5 40-30 | 30 | 4,900 | 900 | 95 | 5,000 | 5.3 | AJH-5 40-60 | 60 | 4,900 | 900 | 110 | 5,000 | 10.2 |
