Thing Tech JDA/ JSA Series Banjo Arm Air Balancer
Manufacturer: THING TECH CO., LTD.
Model: JDA/ JSA Series
Arm
An introduction to our Arm product group, starting with the user-friendly T-Arm.
These are extremely useful pieces of equipment, effective in loading assistance and various operational scenarios.
Used in These Applications
- Move products while lifting them.
- Rotate and balance adjust products, such as between assembly lines.
- Lift products easily.
 |  |  |  |
| Slider Ace 80H | Arm Installation Image | 350 kg Electric Arm | Seat Hook/Catch |

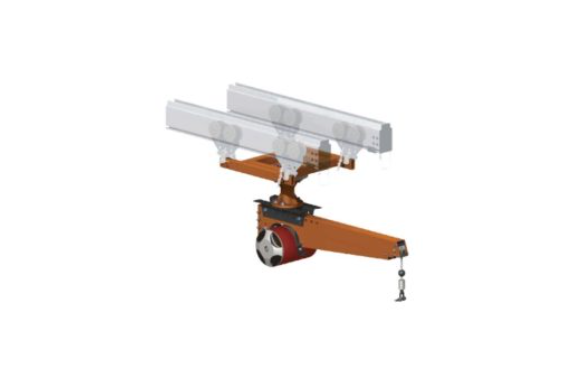

Banjo Arm
The Banjo Arm uses an air balancer and is combined with a rotating arm, thereby securing a large working area.
- Maximum load is 150 kg.
- Types with and without rotation (swivel).
- Rotation brake (Swivel brake).
- Traveling brake.
- Rotation stopper (Swivel stopper).
The Banjo Arm (written as ‘Version Arm’ in Japanese, likely a typo for Banjo Arm) uses an air balancer and is combined with a rotating arm, thereby securing a large working area. The maximum load capacity is up to 150 kg. Types with and without rotation (swivel) are available.
Drawing Data
| Part Number | Type | Specification / Details |
|---|---|---|
| JDA1000028 | KBA100-028 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | With Rotation Mechanism |
| JDA1000076 | KBA150-076 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | With Rotation Mechanism |
| JDA2000073 | KBA225-073 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | With Rotation Mechanism |
| JDA3000073 | KBA350-073 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | With Rotation Mechanism |
| JDA3000117 | KBA225-110 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | With Rotation Mechanism |
| JDA5000080 | KBA500-080 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | With Rotation Mechanism |
| JSA1000076 | KBA150-076 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | Without Rotation Mechanism |
| JSA2000073 | KBA225-073 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | Without Rotation Mechanism |
| JSA3000073 | KBA350-073 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | Without Rotation Mechanism |
| JSA3000117 | KBA225-110 (Without Control) + Arm Set (Length 1200 mm ~ 1520 mm) | Without Rotation Mechanism |
