Manufacturer: THING TECH CO., LTD.
Model: MRTA4001

AIR BALANCER

Simple! Light! Maintenance-Free!

An Air Balancer is a wire-winding balancer that operates solely on air pressure. It can lift and transport objects from 25 kg to 318 kg using only the force of the air.
Because it is made specifically as a balancer, it has low sliding resistance and is ideal for working while holding the workpiece by hand. It is also inexpensive, helping to save on capital investment costs.

Used in These Applications

• Loading assistance device for assembly plants
• Loading and unloading at logistics centers, etc.
• Weight assistance for heavy parts in parts factories, etc.
• Air Hoist

Aluminum Rail & Air Balancer	Air Balancer & Cardboard Clamp	Roll Material Transfer

Balancer Trolley

The Load Trolley allows the air balancer to be directly suspended from the Knight Rail System.
The extensive product lineup allows for a choice tailored to the customer’s application.

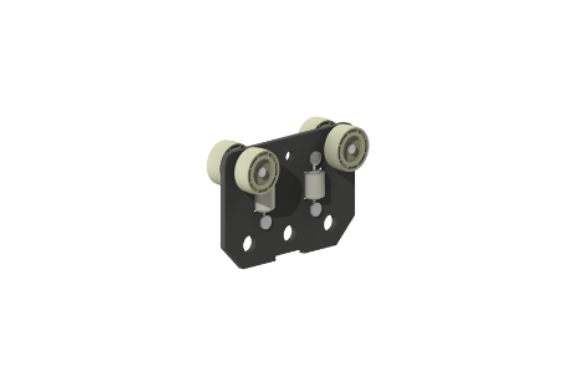

MRTA4001 Trolley

Specifications

• Moves inside the RAD4110 Series rail.
• High-impact nylon wheels are filled with fiberglass.
• Integrated bearings and side guide rollers.
• Maximum recommended bridge length is up to 4.5 m.
• Maximum load is 499 kg.
• Self-weight is 1.36 kg.
• Double-shielded bearings keep dirt out and require no lubrication.
• Reduces stack-up height to 34 mm.
• Minimum and maximum continuous service temperature is from -28.8°C to 120°C.
