Manufacturer: THING TECH CO., LTD.
Model: Smart Lift Spider

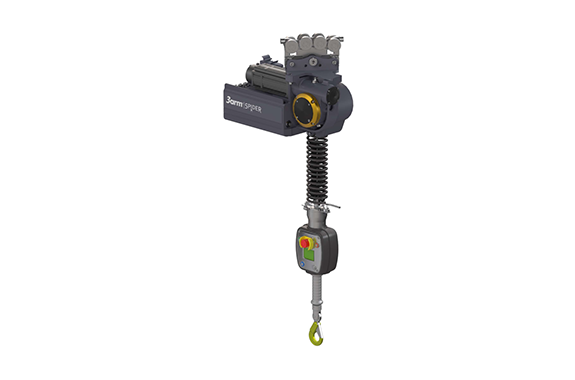

Smart Lift Spider

Electric Rope Balancer Product Guide

1. What is the SPIDER Series?

The Smart Lift Spider R type is an electric rope balancer, with a load capacity lineup ranging from 75kg to 600kg.
It is designed to be mounted and used on a rail system.

Five Features of the Spider

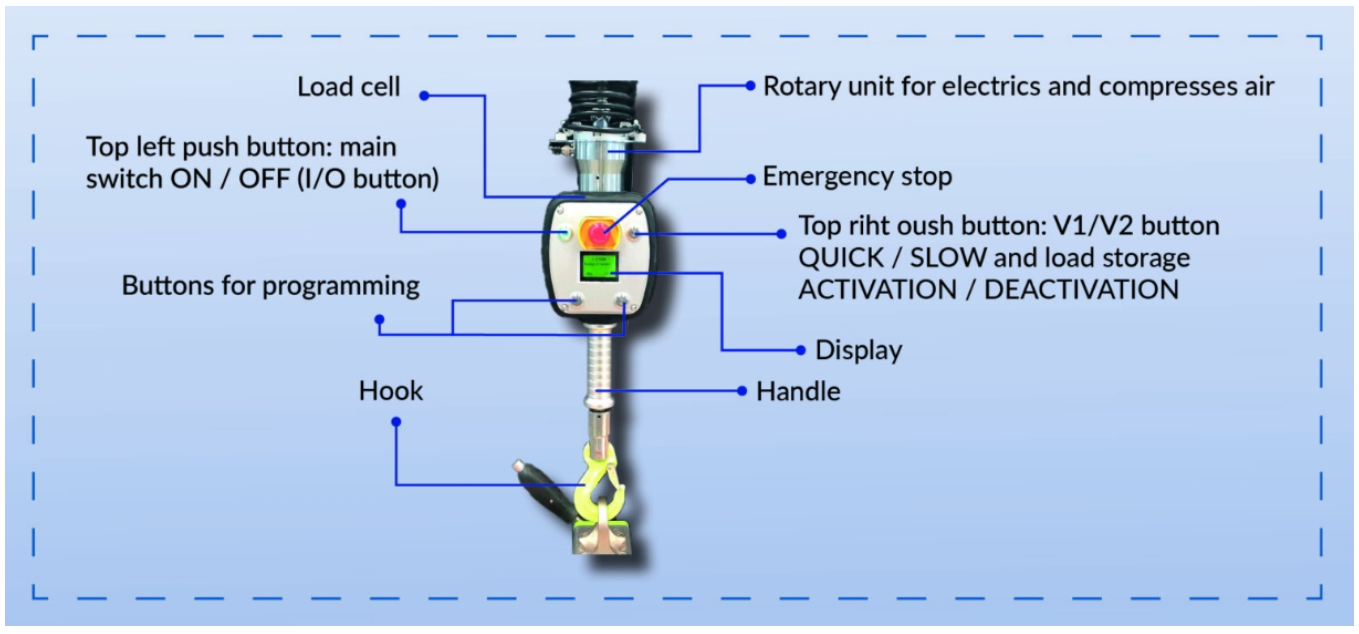

Measuring Cell
The presence of a measuring cell allows for optimal operational performance. It can self-balance, and the loaded weight is accurately displayed.

Endless Rotation
The rotation unit is attached to the operating handle. This allows for infinite rotation and movement of the load.

Easy Programming
With this device, you can easily set different speeds, or reduce the speed at pick-up/release points.

Rail System
A connecting plate is provided for attachment to rail systems from other manufacturers.

Customizable
Flexible software allows the device to be customized to meet the needs of different attachments or other input/output applications.

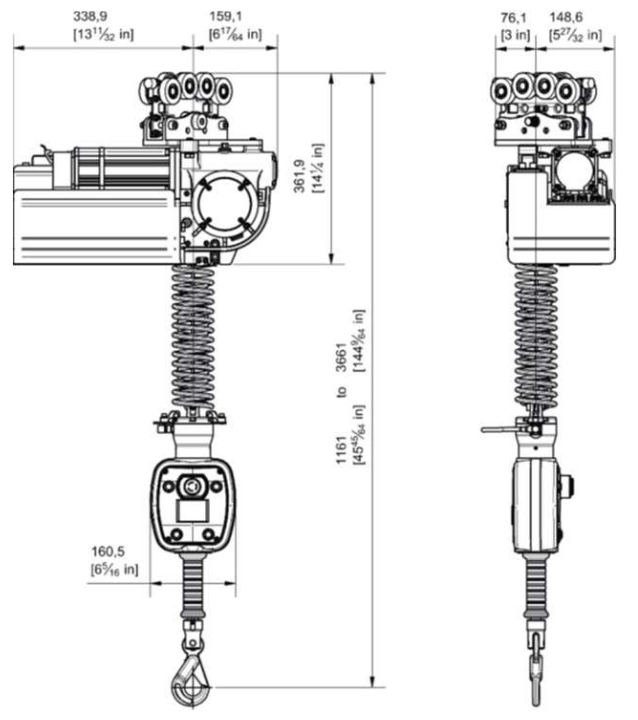

2. Technical Specifications

• Power Supply · 230 V (A step-up transformer will be provided)
• Operation · Handle Mode and Balance Mode

3. Combination with Shin-Tech Products

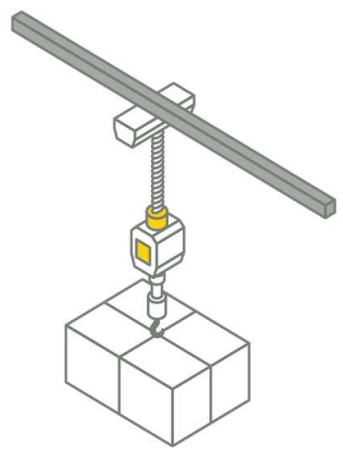

Rail System

Three-dimensional transfer is possible.
We provide two types of rails: aluminum and steel.
Installation can be selected between overhead suspension or floor-mounted gantry.

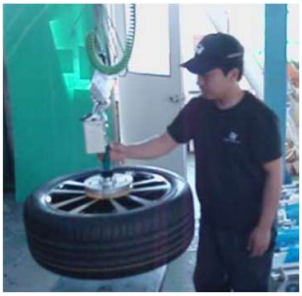

End Attachments

We consistently offer the design and manufacturing of end attachments.
We propose products tailored to the customer’s process.
Various other attachments are also available in addition to the following.

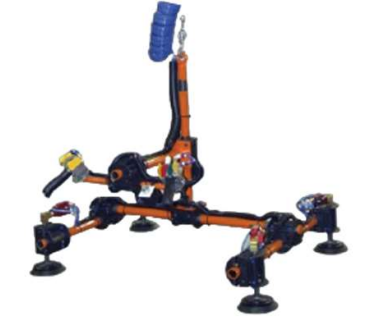

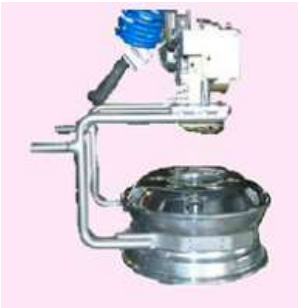

Inner Diameter Clamp	Outer Diameter Clamp	Suction Attachment
