TMK Tamaki

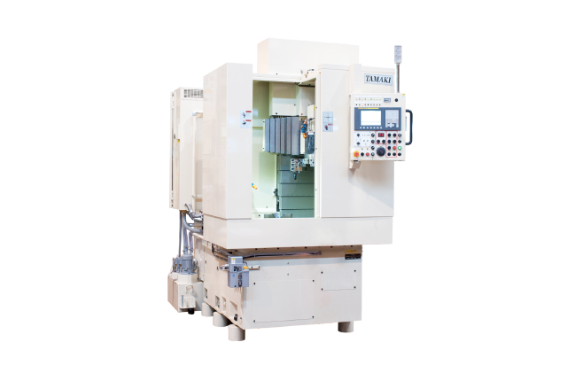

TMK Tamaki Iron Works NC Lathe NV-350T
Manufacturer: Tamaki Iron Works Co., Ltd.
Model: NV-350T
Feature
- Vertical NC lathe with turret-type tool post for 12-inch machines
Specifications
| Standard chuck size | 12 inches |
| Bed maximum swing | ø660mm |
| Maximum machining diameter | ø350mm |
| Maximum processing length | 400mm |
| Main shaft bearing inner diameter | ø150mm |
| Rotation speed (MAX) | 2000rpm |
| Spindle Motor Output | 11/15kw |
| Slide Stroke | Z=450st, X=250st |
| Maximum Tool Size | □25mm, ø40mm |
| Number of tools installed | Max 12 pieces |
| NC device | FANUC Series 0i-TF Plus |
| Approximate machine dimensions (depth × width × height) | 3500mm × 1600mm × 2900mm |
