TMK Tamaki

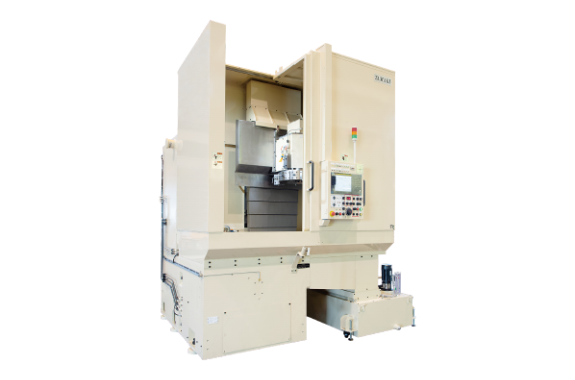

TMK Tamaki Iron Works NC Lathe NV-410T
Manufacturer: Tamaki Iron Works Co., Ltd.
Model: NV-350T
Feature
- Vertical NC lathe with turret-type tool post for 18-inch machines
Specifications
| Standard chuck size | 18 inches |
| Bed maximum swing | ø880mm |
| Maximum machining diameter | ø450mm |
| Maximum processing length | 450mm |
| Main shaft bearing inner diameter | ø170mm |
| Rotation speed (MAX) | 1000 rpm |
| Spindle Motor Output | 18.5/22kw |
| Slide Stroke | Z=600st, X=350st |
| Maximum Tool Size | □32mm, ø50mm |
| Number of tools installed | Max 12 pieces |
| NC device | FANUC Series 0i-TF Plus |
| Approximate machine dimensions (depth × width × height) | 3400mm × 2400mm × 3200mm |
