Manufacturer: Tamaki Iron Works Co., Ltd.
Model: NV-410TW / NV-610T / NV-610TW

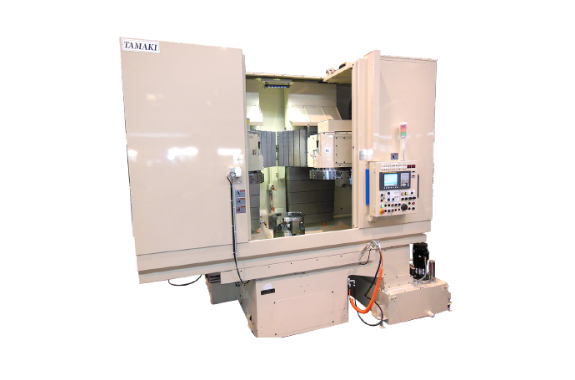

NV-410TW [Specifications]
| Standard chuck size | 18 inches |
| Bed maximum swing | ø880mm |
| Maximum machining diameter | ø450mm |
| Maximum processing length | 450mm |
| Main shaft bearing inner diameter | ø170mm |
| Rotation speed (MAX) | 1000 rpm |
| Spindle Motor Output | 18.5/22kw |
| Slide Stroke | Z=600st, X=250st |
| Maximum Tool Size | □32mm, ø50mm |
| Number of tools installed | Max 12 pieces |
| NC device | FANUC Series 0i-TF Plus |
| Approximate machine dimensions (depth × width × height) | 3600mm × 3500mm × 3400mm |
NV-610T [Specifications]
| Standard chuck size | 24 inches |
| Bed maximum swing | ø850mm |
| Maximum machining diameter | ø600mm |
| Maximum processing length | 450mm |
| Main shaft bearing inner diameter | ø180mm |
| Rotation speed (MAX) | 1000 rpm |
| Spindle Motor Output | 22/30kw |
| Slide Stroke | Z=600st, X=400st |
| Maximum Tool Size | □32mm, ø50mm |
| Number of tools installed | Max 12 pieces |
| NC device | FANUC Series 0i-TF Plus |
| Approximate machine dimensions (depth × width × height) | 3166mm × 2665mm × 3350mm |
NV-610TW [Specifications]
| Standard chuck size | 24 inches |
| Bed maximum swing | ø850mm |
| Maximum machining diameter | ø600mm |
| Maximum processing length | 450mm |
| Main shaft bearing inner diameter | ø180mm |
| Rotation speed (MAX) | 1000 rpm |
| Spindle Motor Output | 22/30kw |
| Slide Stroke | Z=600st, X=300st |
| Maximum Tool Size | □32 mm, ø50 mm |
| Number of tools installed | Max 12 pieces |
| NC device | FANUC Series 0i-TF Plus |
| Approximate machine dimensions (depth × width × height) | 3600mm × 3500mm × 3400mm |
