TMK Tamaki

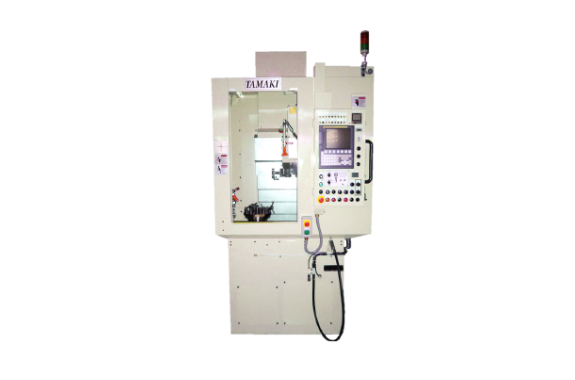

TMK Tamaki Iron Works NC Lathe V-20T
Manufacturer: Tamaki Iron Works Co., Ltd.
Model: V-20T
Feature
- Turret type vertical NC lathe for 8 inch
Specifications
| Standard chuck size | 8 inches |
| Bed maximum swing | ø350mm |
| Maximum machining diameter | ø200mm |
| Maximum processing length | 250 mm |
| Main shaft bearing inner diameter | ø100mm |
| Rotation speed (MAX) | 4000rpm |
| Spindle Motor Output | 7.5/11kw |
| Slide Stroke | Z=400st, X=200st |
| Maximum Tool Size | □25mm, ø32mm |
| Number of tools installed | Max 10 pieces |
| NC device | FANUC Series 0i-TF Plus |
| Approx. machine dimensions (depth × width × height) | 2380mm × 1350mm × 2400mm |
